6-4 Using Analog I/O with Direct Connection
Add the Remote Analog I/O Module to the I/O Configuration
You must now add the new remote analog I/O module to the I/O
Configuration. In this example, you add the 1756-OF8 analog output
module and configure one of its channels for a 0V to 10V output
range. Use these steps as a guide when you are configuring different
I/O modules for your system.

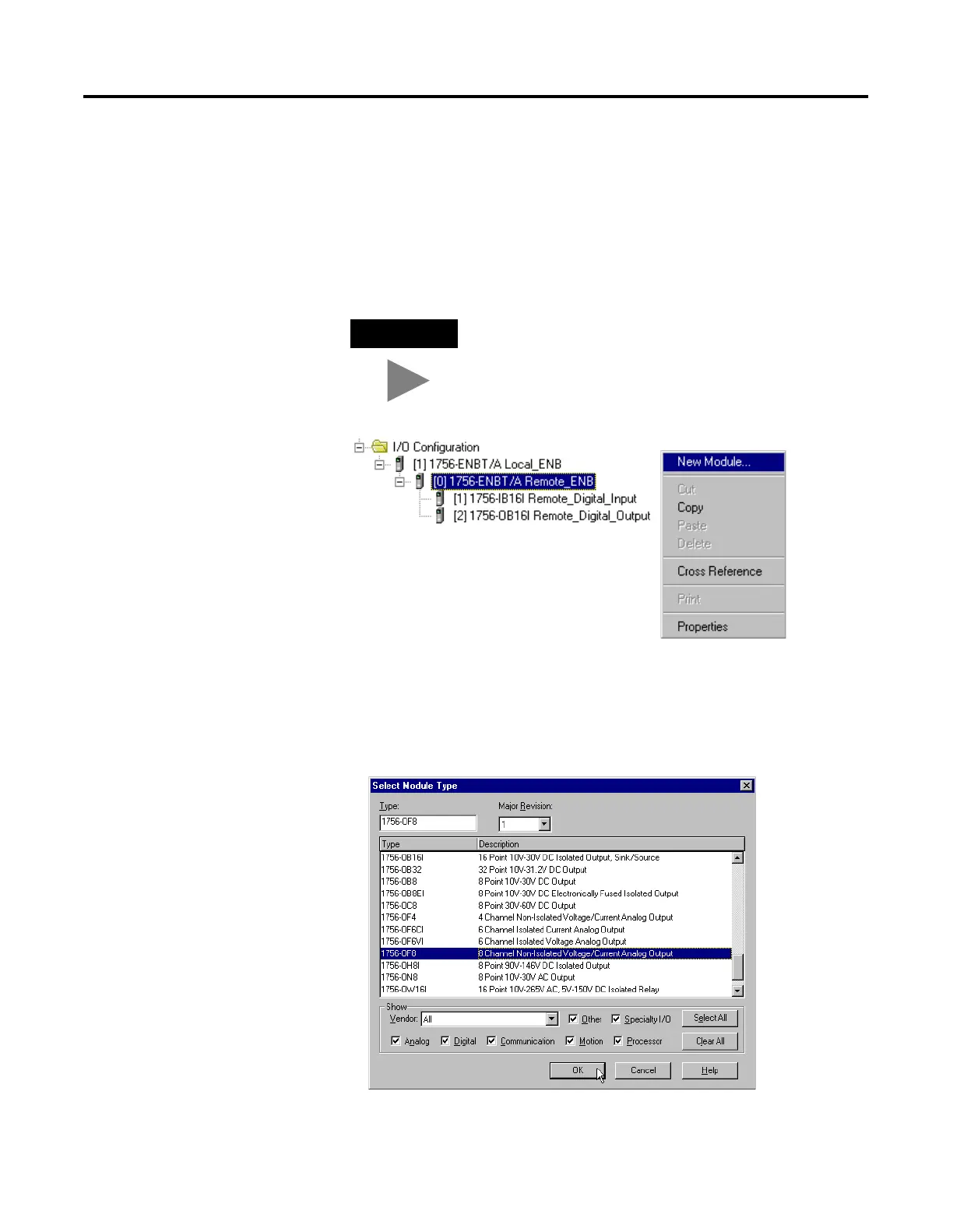

1. Right click on the Remote_ENB module under the I/O
Configuration folder and select New Module from the pop-up
window.
The Select Module Type window will open.
2. Select the 1756-OF8 analog output module and click on OK.
TIP
For additional information on configuring a
ControlLogix analog I/O module see the
ControlLogix Analog I/O Module User Manual,
publication 1756-6.5.9.
