Publication 1756-UM050A-EN-P - December 2001
Installing the 1756-ENBT Module 2-7
Connecting the Module to
the Network

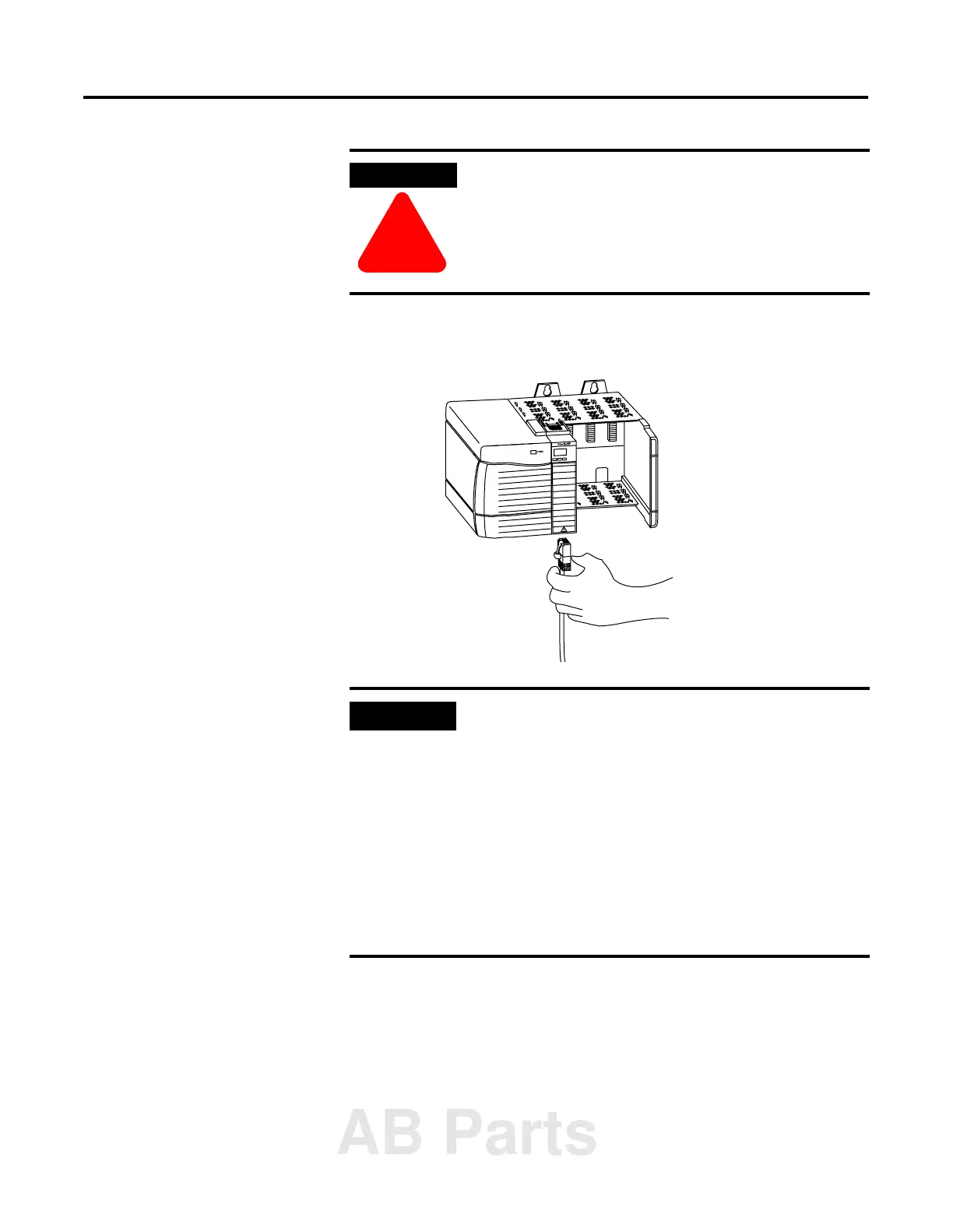

Attach the RJ45 connector to the Ethernet port on the bottom of the
module as shown below:
WARNING
!
If you connect or disconnect the Ethernet cable with
power applied to this module or any device on the
network, an electrical arc can occur. This could
cause an explosion in hazardous location
installations. Be sure that power is removed or the
area is nonhazardous before proceeding.
IMPORTANT
We recommend connecting the module to the
network via a 100MB Ethernet switch, which will
reduce collisions and lost packets and increase
network bandwidth. See Appendix E for important
information on autonegotiation requirements.
For detailed EtherNet/IP connection information, see
the following publications:
EtherNet/IP Performance and Application Guide,
publication ENET-AP001
EtherNet/IP Media Planning and Installation
Guide, publication ENET-IN001
OR
31279-M
