8-14 Interfacing with FLEX I/O
Download the Program to the Controller
To download the program to the controller do the following:

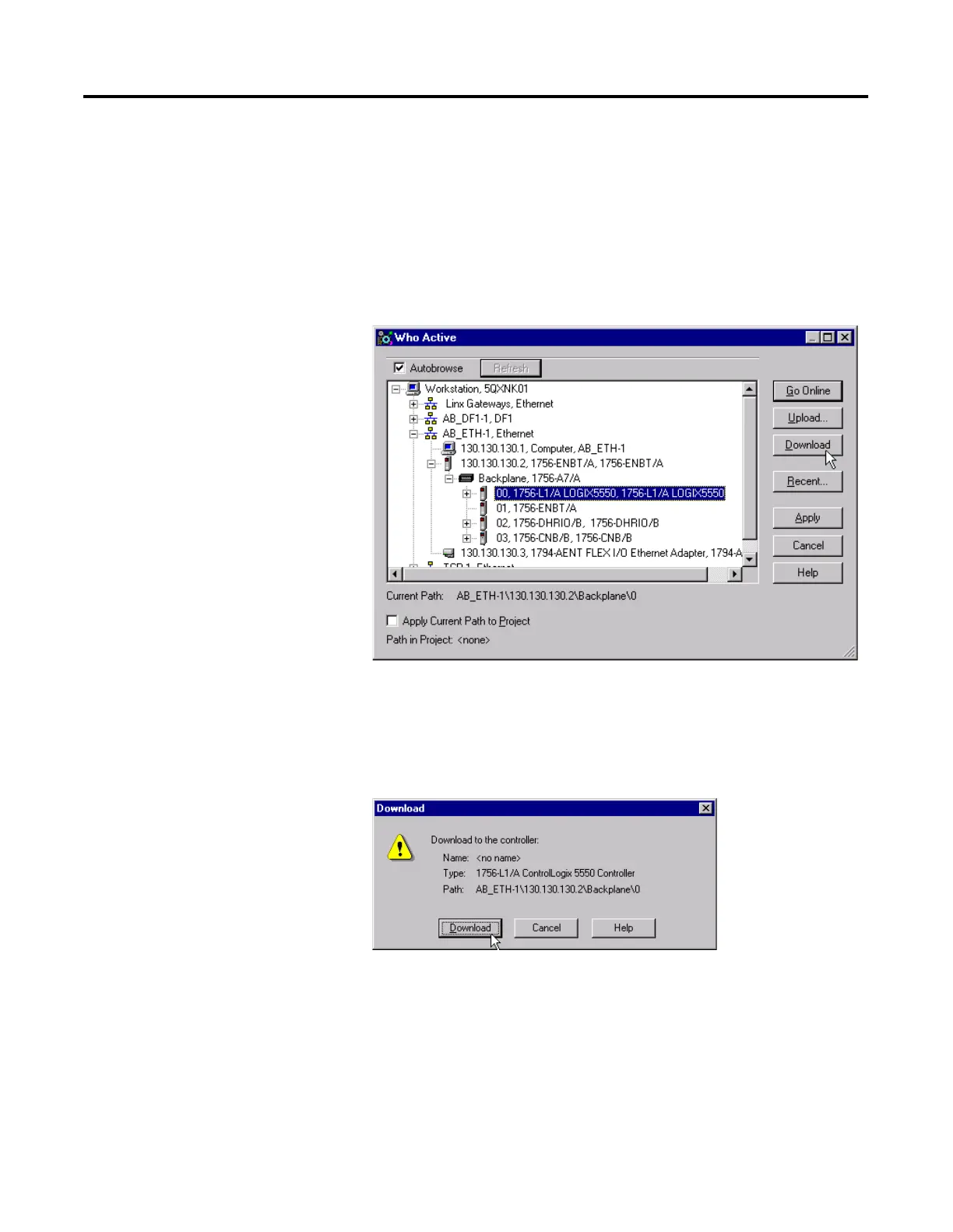

1. Click on the Communications menu and select Who Active.
The Who Active window will open (Your window will show the
drivers and devices you have installed).
2. Select your Ethernet driver (e.g., AB_ETH-1) and expand the tree
through the backplane of the local ControlLogix chassis.
3. Highlight the Logix 5550 controller and click on the Download
button. You will see a message similar to the following:
4. Click on the Download button. The program will be downloaded
to the controller.
5. Minimize RSLogix5000.
