Configure the I/O
You now add the FLEX I/O modules to the controller’s I/O
configuration. To do this you first add the local 1756-ENBT module to
the I/O configuration. Next you add the 1794-AENT adapter as a
“child” of the 1756-ENBT module. Then you add the I/O modules as
“children” of the 1794-AENT adapter.
Add the Local EtherNet/IP Bridge to the I/O Configuration

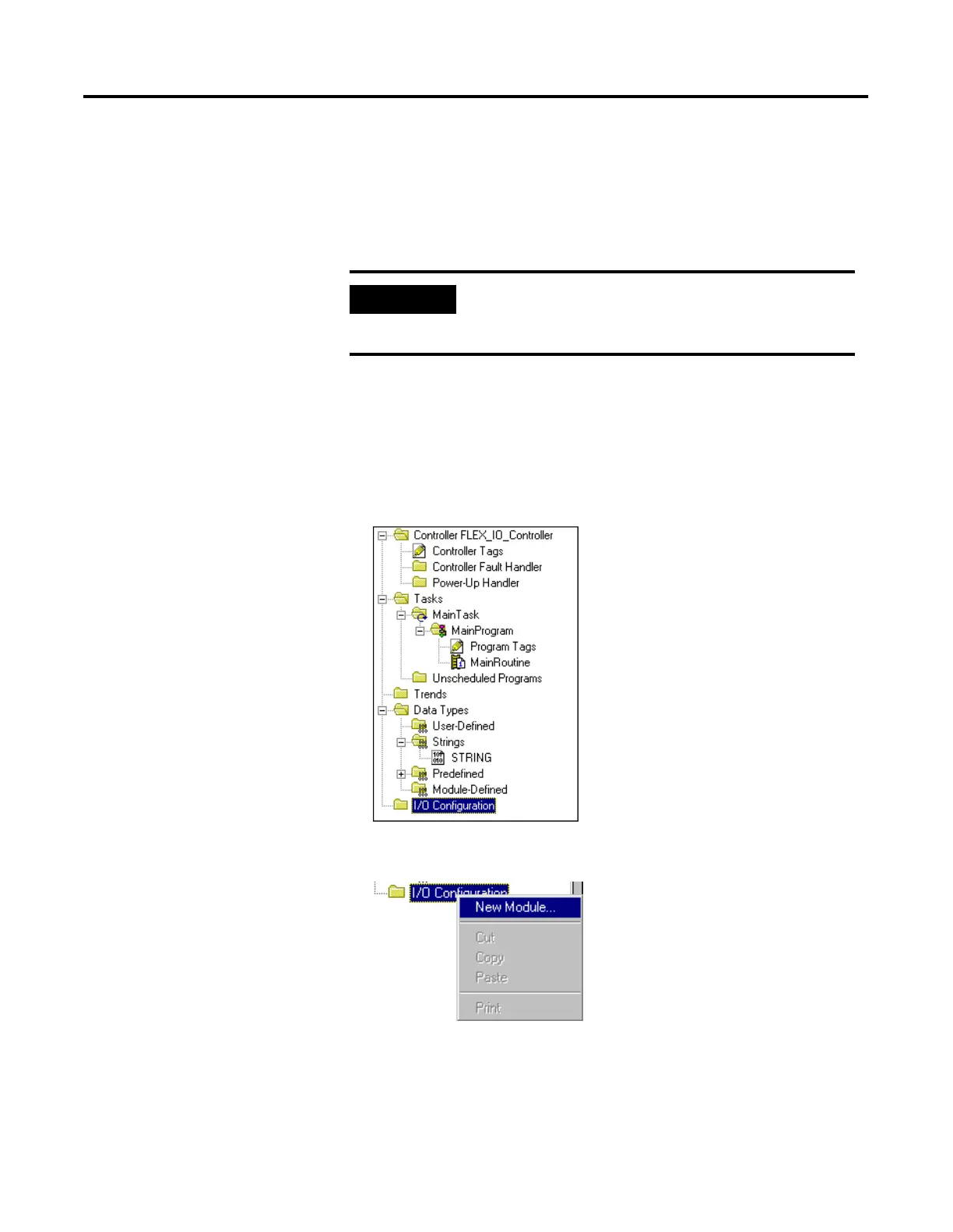

1. Select the IO Configuration folder in the project window and
click the right mouse button.
The following pop-up window will open.
2. Click on New Module.
IMPORTANT
Click on the Help buttons on the configuration
screens shown in this section if you need assistance
in selecting and setting the parameters.
