Publication 1756-UM050A-EN-P - December 2001
6-10 Using Analog I/O with Direct Connection
Modify the Ladder Program

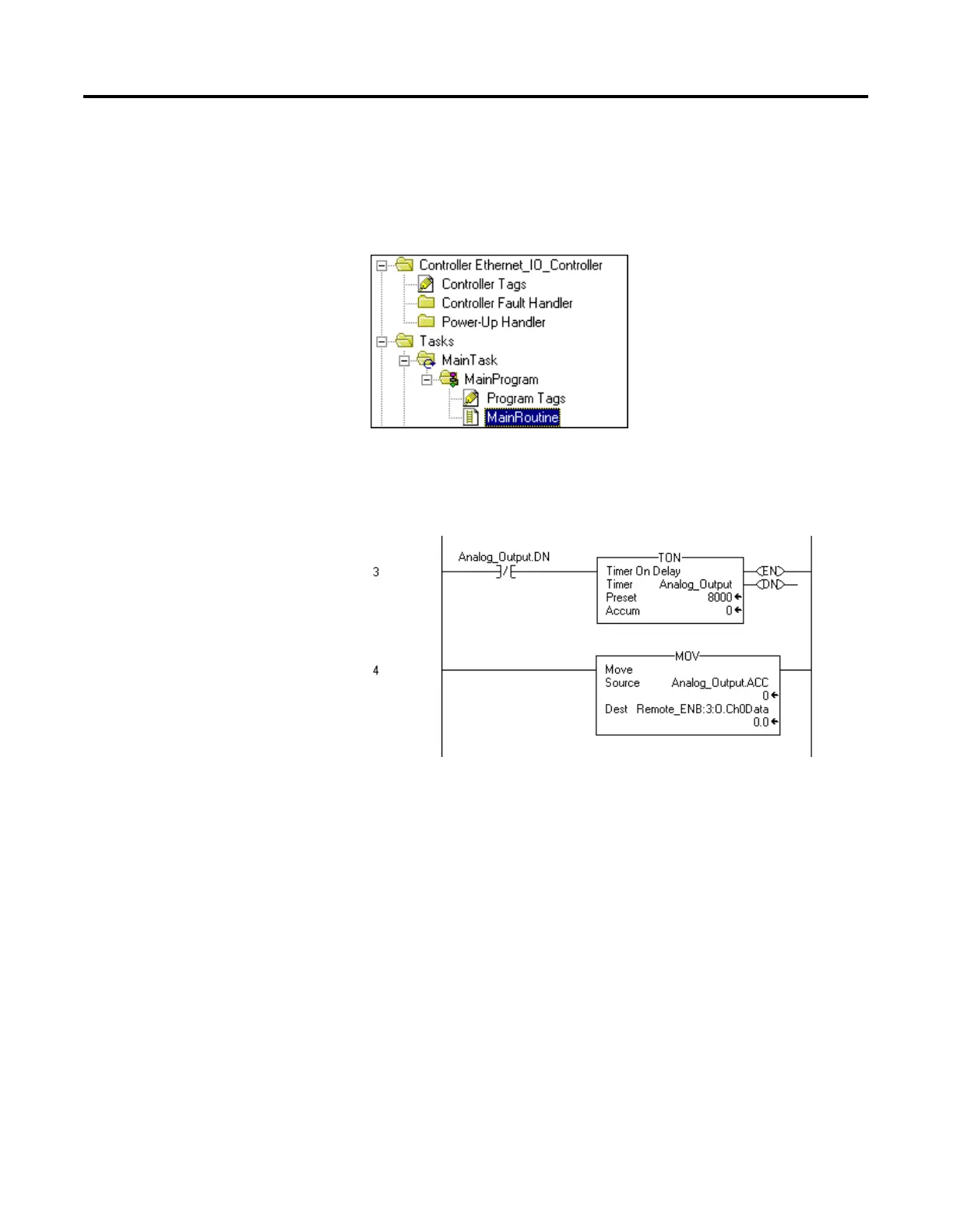

To modify the ladder program to test the new configuration perform
the following steps:
1. Double-click on Main Routine under the Main Program folder,
and add rungs 3 and 4 to the ladder program of the previous
chapter.
2. Save the program.
