Example Network Configurations D-3
Expanded System
with FLEX I/O

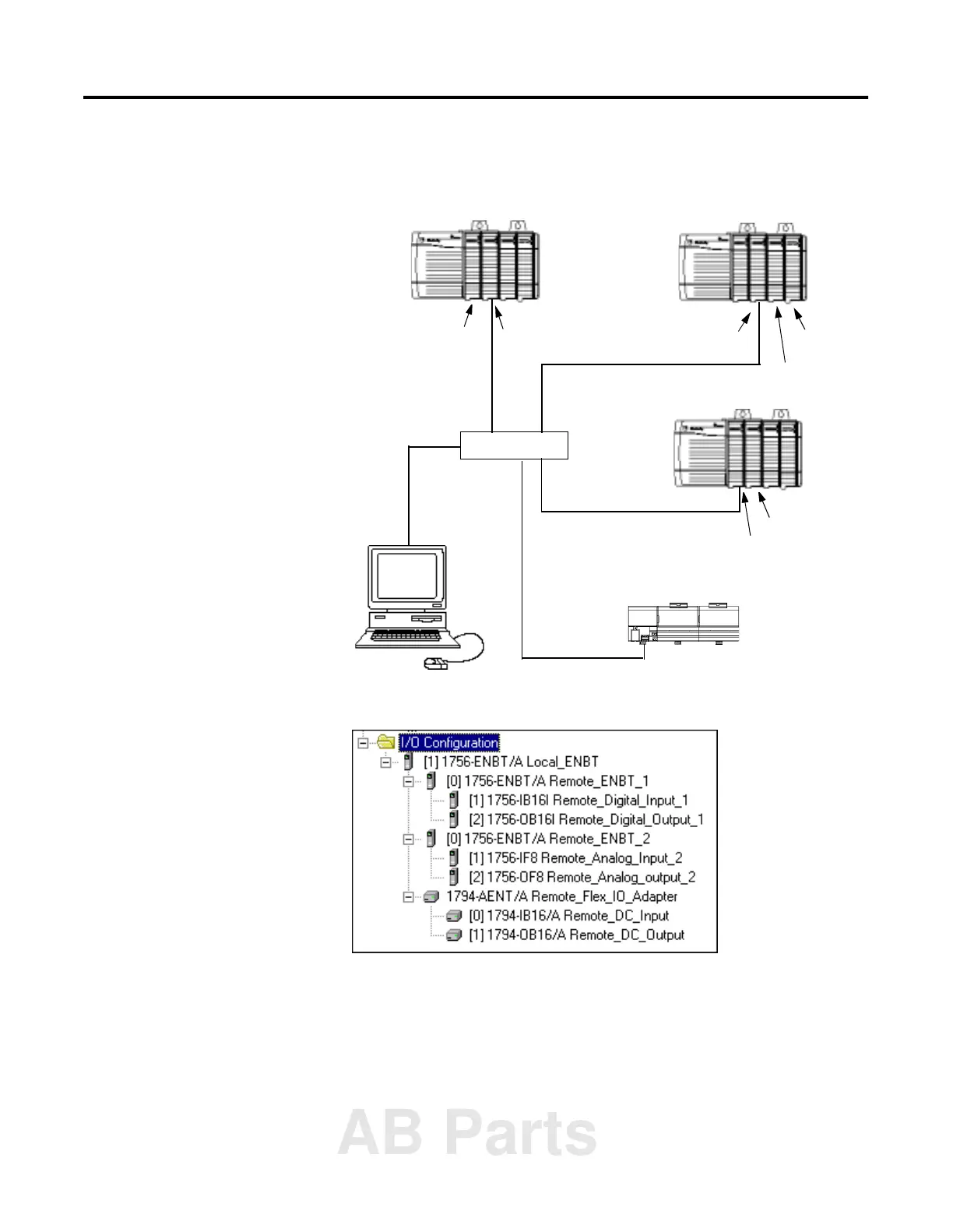

The following figure shows the previous network with FLEX I/O
added to the system.
The RSLogix 5000 I/O Configuration for this network is shown below.
Logix5550
1756-ENBT
1756-ENBT
Local
Chassis
Remote
Chassis
PC Workstation
Slot 0 1
Slot 1 2 3
1756-IB16
Digital Input
1756-OB16I
Digital Output
Controller
#1
Remote
Chassis
#2
1756-ENBT
1756-OF6VI
Analog Output
Slot 0 1
Ethernet Switch
Flex I/O
1794-AENT
AB Parts
