Publication 1756-UM050A-EN-P - December 2001
Using Produced and Consumed Tags 7-11
Add the Remote Ethernet Bridge to the I/O Configuration
Next, you must add the remote 1756-ENBT as a child of the local
1756-ENBT.

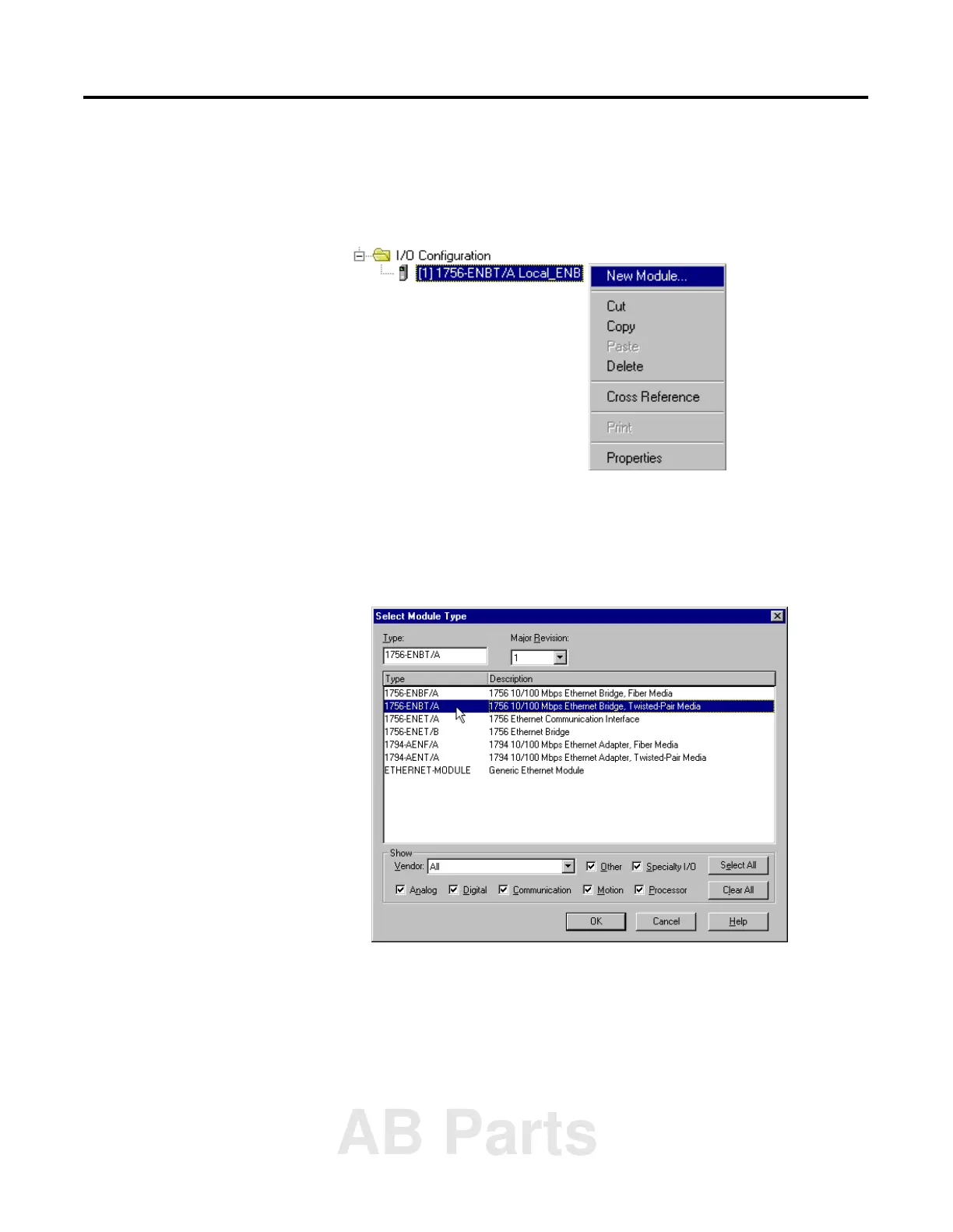

1. In the Project window, right click on the local 1756-ENBT module
under the I/O Configuration folder and select New Module from
the pop-up window.
The Select Module Type window will open
2. Select the 1756-ENBT/A Ethernet Bridge and click on OK.
