Allen-Bradley ControlLogix 1756-ENBT User Manual

Publication 1756-UM050A-EN-P - December 2001
2-4 Installing the 1756-ENBT Module

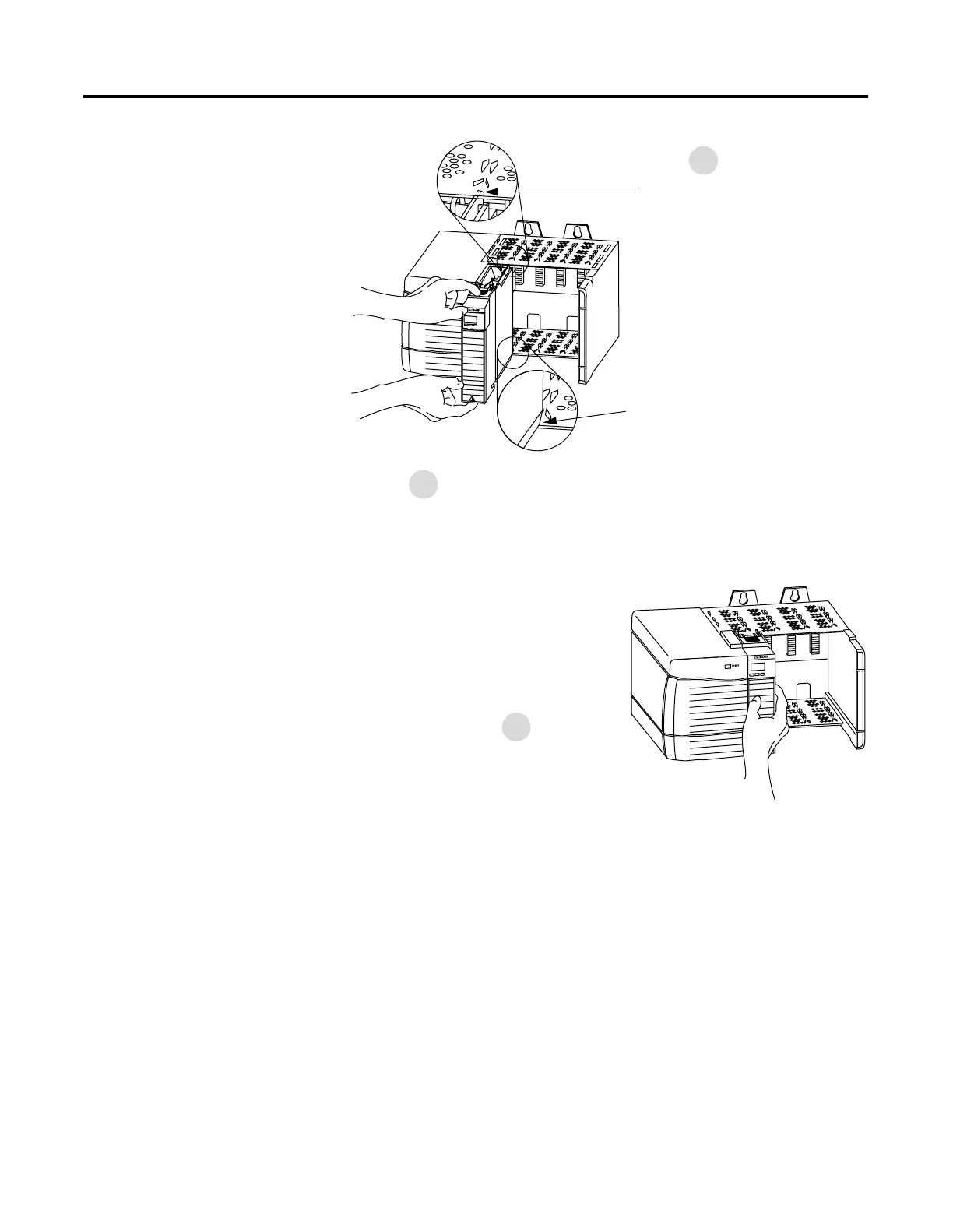

Installing the Module
in the Chassis
31275-M
31276-M
Align the circuit board
with top and bottom
guides in the chassis.
1
Slide the module into the chassis.
Make sure the module backplane
connector properly connects to the
chassis backplane.
2
The module is properly installed
when it is flush with the power
supply or other installed modules.
Circuit Board
3
