5-8 Using Rack Optimized I/O
6. Click on the Finish button to accept the configuration. The remote
1756-ENBT module will appear indented under the local
1756-ENBT in the I/O Configuration folder.
Add the Remote I/O Modules to the I/O Configuration
You must now add the remote I/O modules to the I/O Configuration
List under the remote 1756-ENBT module.
In this example, you will add a a 1756-IB16I digital input module and
a 1756-OB16I digital output module with standard configurations. Use
these steps as a guide when you are configuring different I/O
modules for your actual system.
Add the Remote Digital Input Module

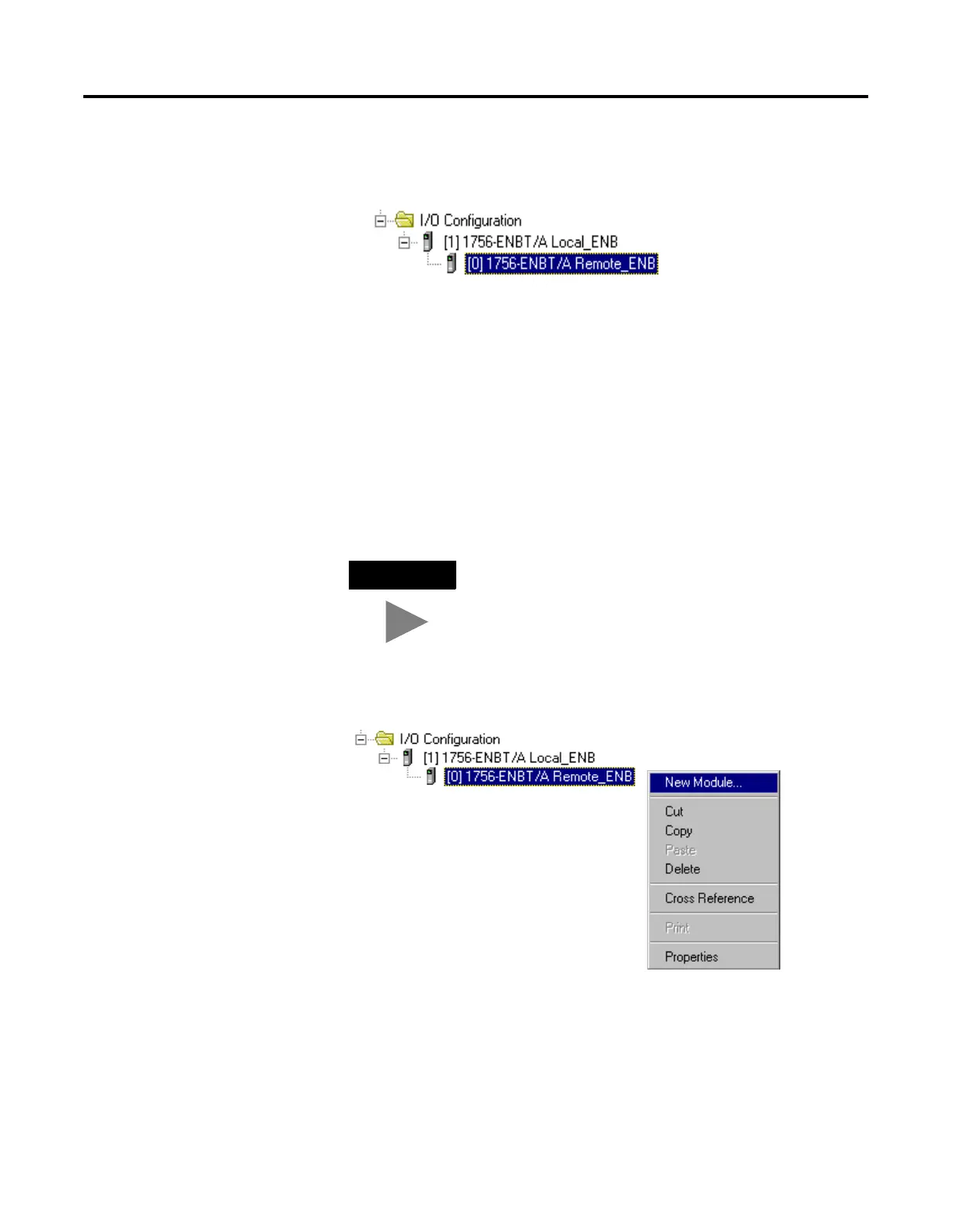

1. Right click on the remote 1756-ENBT module under the I/O
Configuration folder and select New Module.
TIP
This example application uses the I/O module
default configurations. For information on altering
the default configurations see the ControlLogix
Digital I/O Module User Manual, publication
1756-6.5.8.
