Publication 1756-UM050A-EN-P - December 2001
5-14 Using Rack Optimized I/O
Create the Ladder Program
To create a ladder program to test the configuration perform the
following steps:

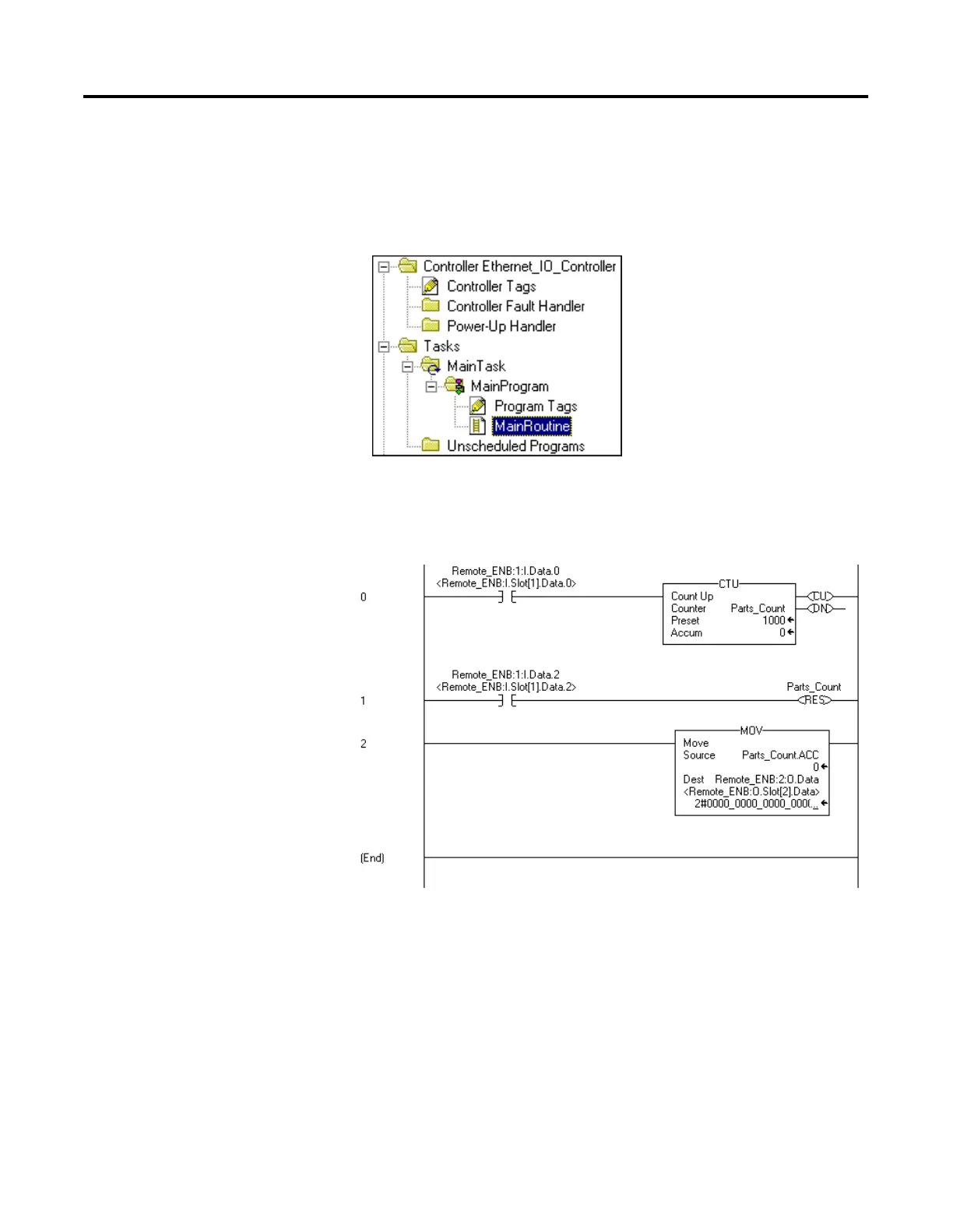

1. Double-click on Main Routine under the Main Program folder,
and enter the following ladder program, using the tags previously
created.
2. Save the program.
