Allen-Bradley ControlLogix 1756-ENBT User Manual

Publication 1756-UM050A-EN-P - December 2001
5-6 Using Rack Optimized I/O
Add the Remote Ethernet Bridge to the I/O Configuration
Next, you must add the remote 1756-ENBT module as a “child” of the
local 1756-ENBT module.

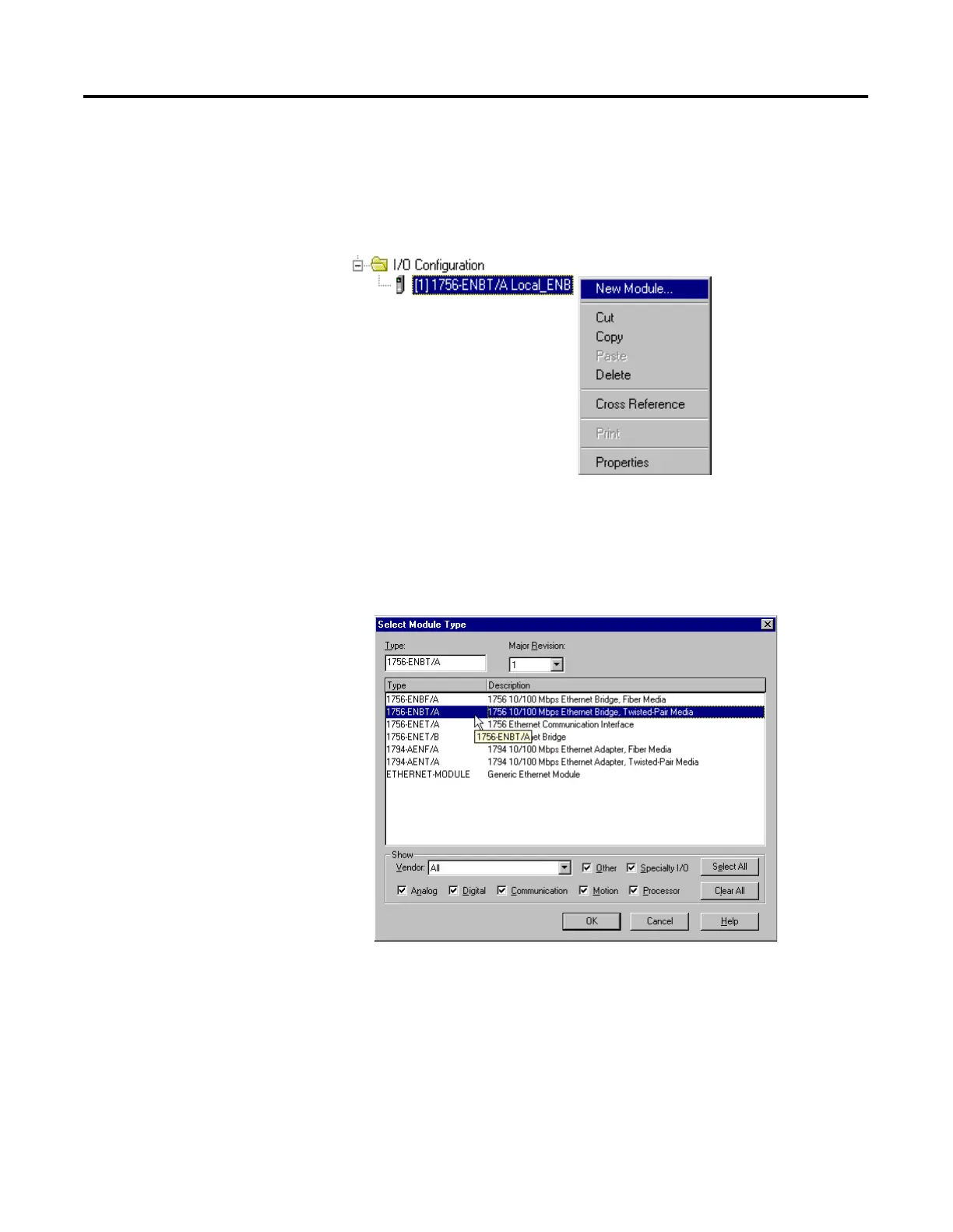

1. In the Project window, right click on the local 1756-ENBT module
under the I/O Configuration folder and select New Module from
the pop-up window.
The Select Module Type window will open.
2. Select the 1756-ENBT/A Ethernet Bridge from the list and click on
OK.
