Using Analog I/O with Direct Connection 6-5

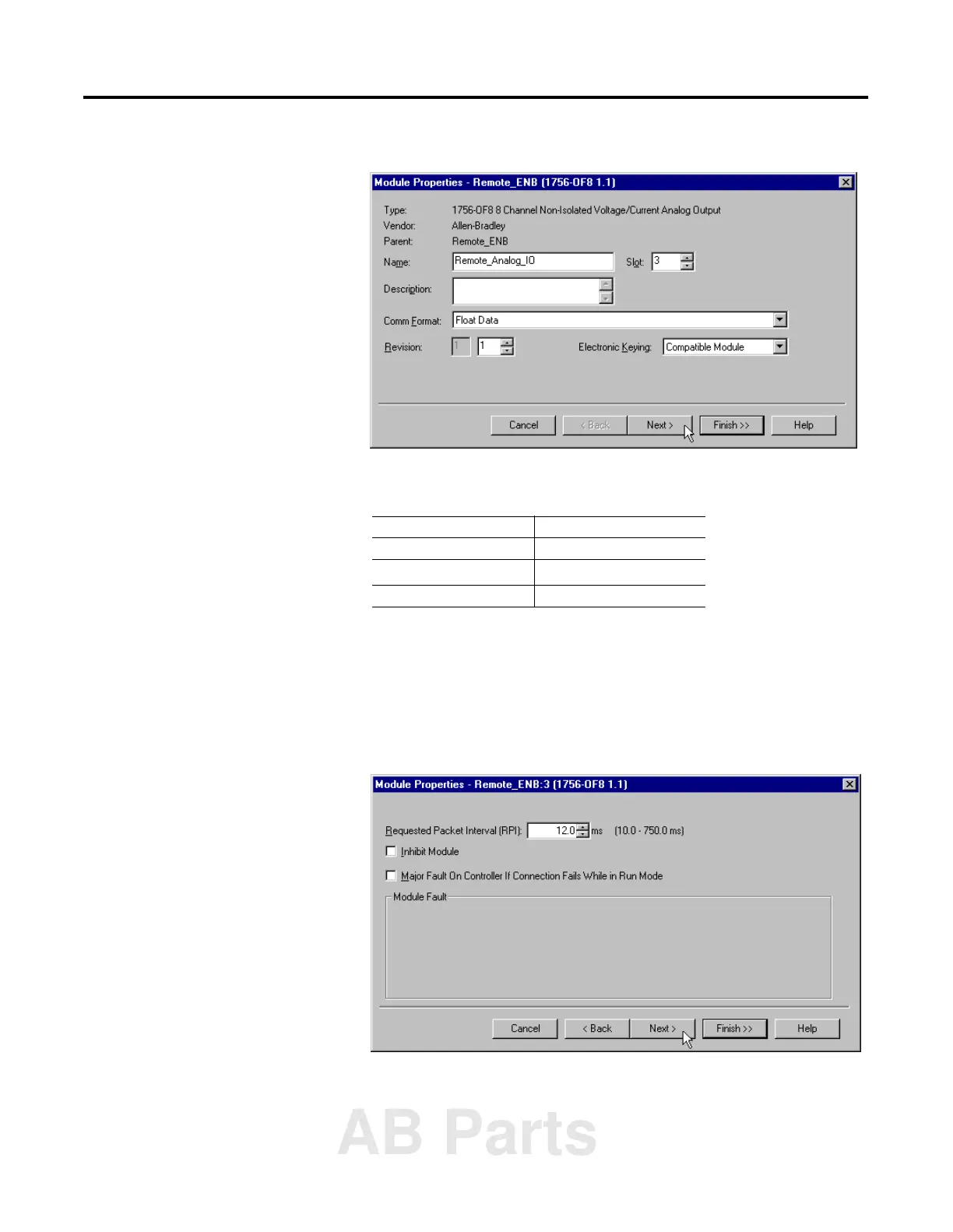

The Module Properties window will open.
3. Enter the following parameters:
You must now configure the channel settings of the Analog I/O
module. You do this using a series of pages that appear in the Module
Properties window.
4. Click on the Next button. The following page will open:
5. This window allows you to adjust the Requested Packet Interval
(RPI) to meet your system’s requirements (for this example you
can leave it at the default 12 ms rate).
Name Remote_Analog_Output
Slot 3
Comm Format
Float Data
(1)
(1)
All analog Comm Formats use direct connection. The default is
floating decimal point data.
Electronic Keying Compatible Module
AB Parts
To Next Page
