1 Publication 1756-UM050A-EN-P - December 2001
Appendix
B
1756-ENBT Module Diagnostics
The 1756-ENBT module’s Web pages offer internal and network
diagnostics. This appendix provides a brief explanation of the most
useful information. To view the web pages, type the module’s IP

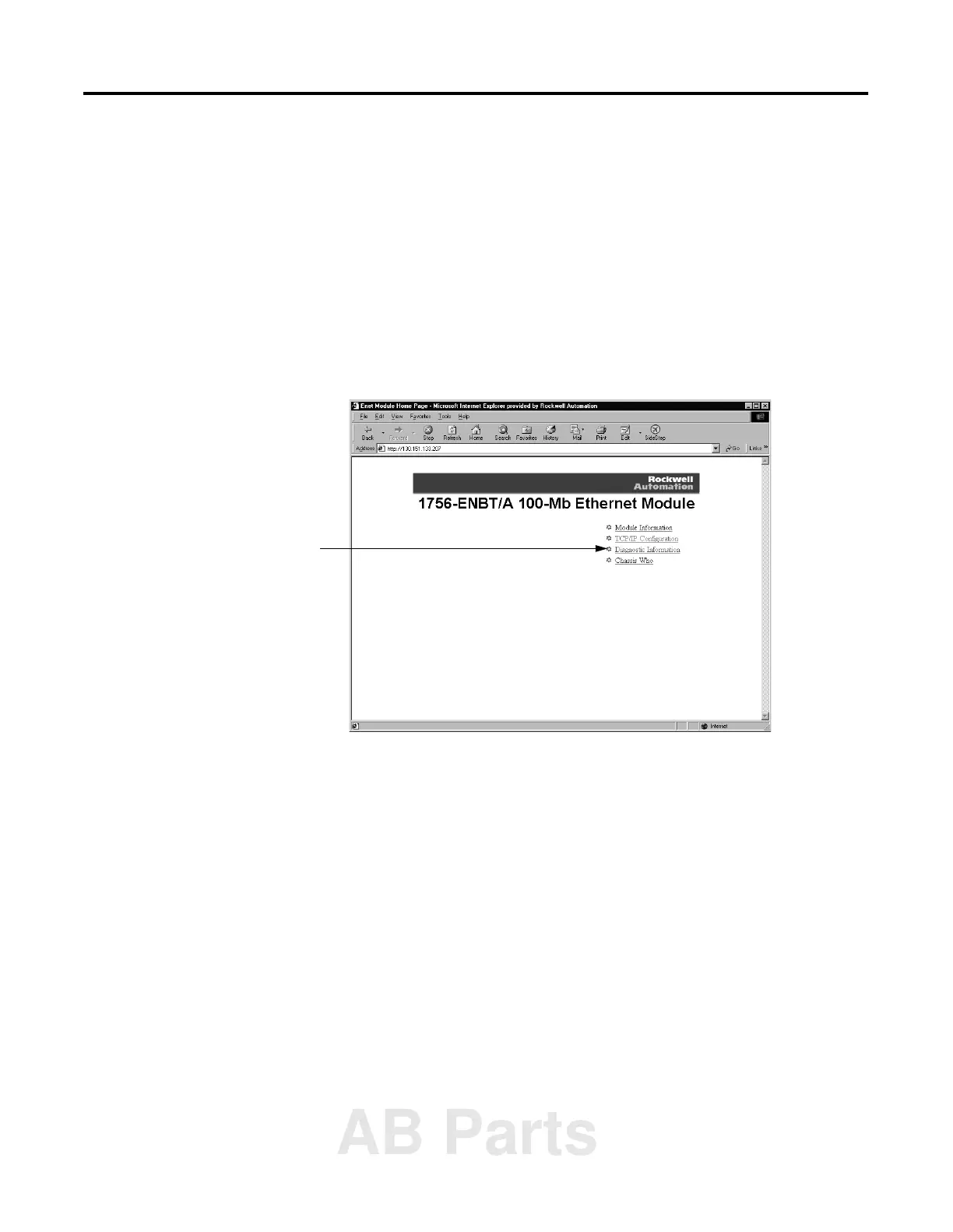

address in your browser’s address field. You will see the following
web page:
Using Diagnostic
Information
On the Diagnostic Information page, you can get information about:
• Class 1 connections - The most time critical connections,
including I/O and produce/consume connections.
• Class 3 connections - The less time critical connections, such as
those used for MMI and PLC programming or PLC to PLC
messaging.
Use this link to access
the Diagnostic
Information page.
