Using Rack Optimized I/O 5-11

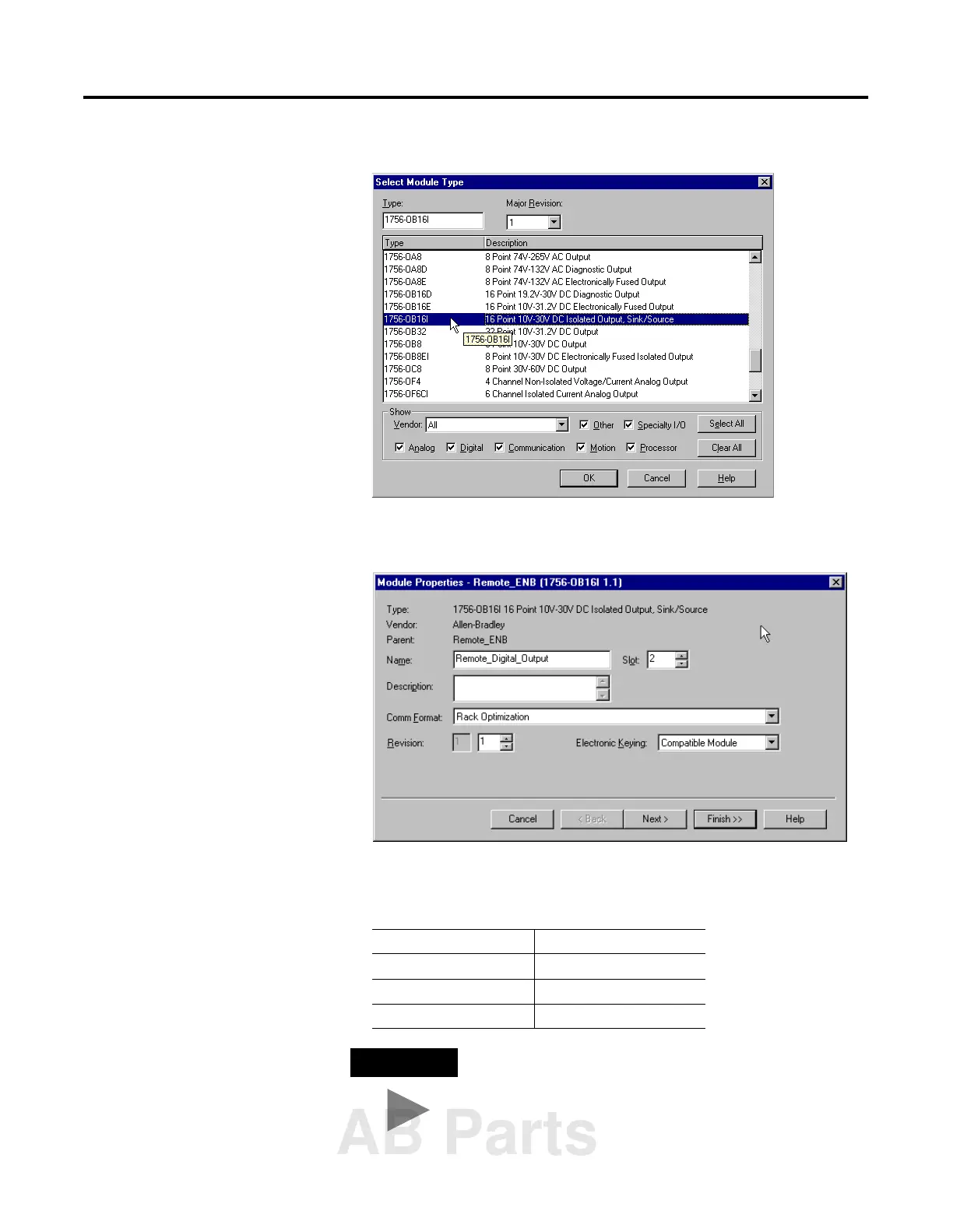

The Select Module Type window will open.
7. Select the 1756-OB16I digital output module from the list and click
on OK. The Module Properties window will open.
8. Enter the following parameters (the values we used are listed in the
table):
Name Remote_Digital_Output
Slot 2
Comm Format Rack Optimization
Electronic Keying Compatible Module
TIP
If you want to alter the default parameters, click on
the Next button. Refer to the ControlLogix Digital I/O
User Manual, publication 1756-6.5.8, for details.
