Allied Telesis IE340 Series - Figure 19: Installing the Switch on a DIN Rail - 1; Figure 20: Installing the Switch on a DIN Rail - 2

Chapter 3: Installing the Switch
71
To install the switch on a DIN rail, perform the following procedure:
1. Hold the switch with both hands facing toward the DIN rail on the wall.
2. Tilt the bottom of the switch towards the wall and hook the bottom of
the switch bracket on the bottom edge of DIN rail.

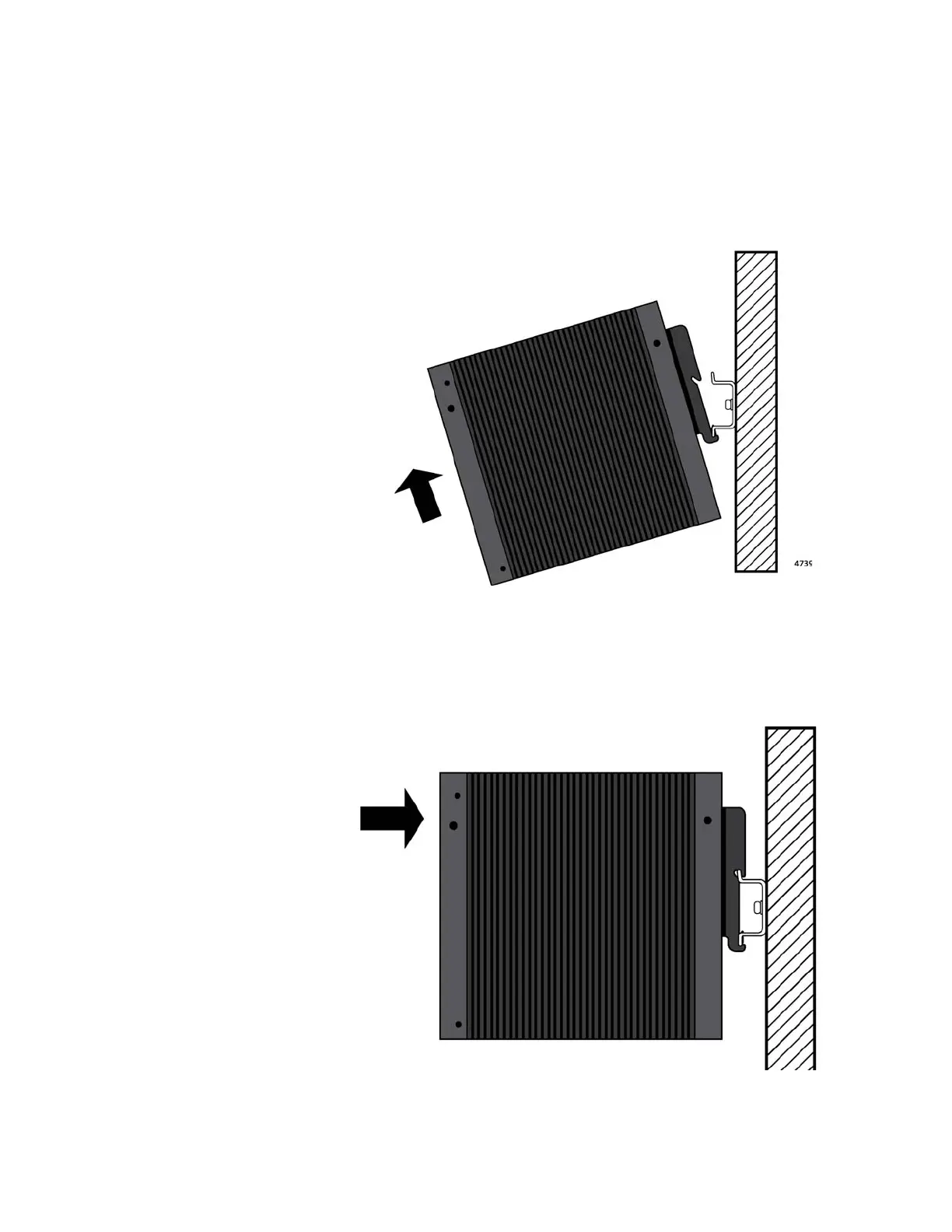

Figure 19. Installing the Switch on a DIN Rail - 1
3. While pressing the switch upwards to compress the springs of the bracket,
hook the top of the bracket on the DIN rail by pushing the top of the switch
toward the wall until it is vertical.
Figure 20. Installing the Switch on a DIN Rail - 2
