IE340 Series Installation Guide
76
Installing the
Switch on the
Plywood Base
This procedure assumes that the plywood base for the switch is installed
on the wall. Please review “Reviewing Safety Precautions” on page 54
and “Reviewing Site Requirements” on page 59 before performing this
procedure.
Warning
The device is heavy. Always ask for assistance before moving or
lifting it to avoid injuring yourself or damaging the equipment.
 E122
To install the switch on the plywood base, perform the following
procedure:
1. Place the switch on a table.
2. With a Phillips-head screwdriver, remove the four screws holding the
pre-installed DIN rail bracket, and remove the bracket. Refer to
Figure 24.

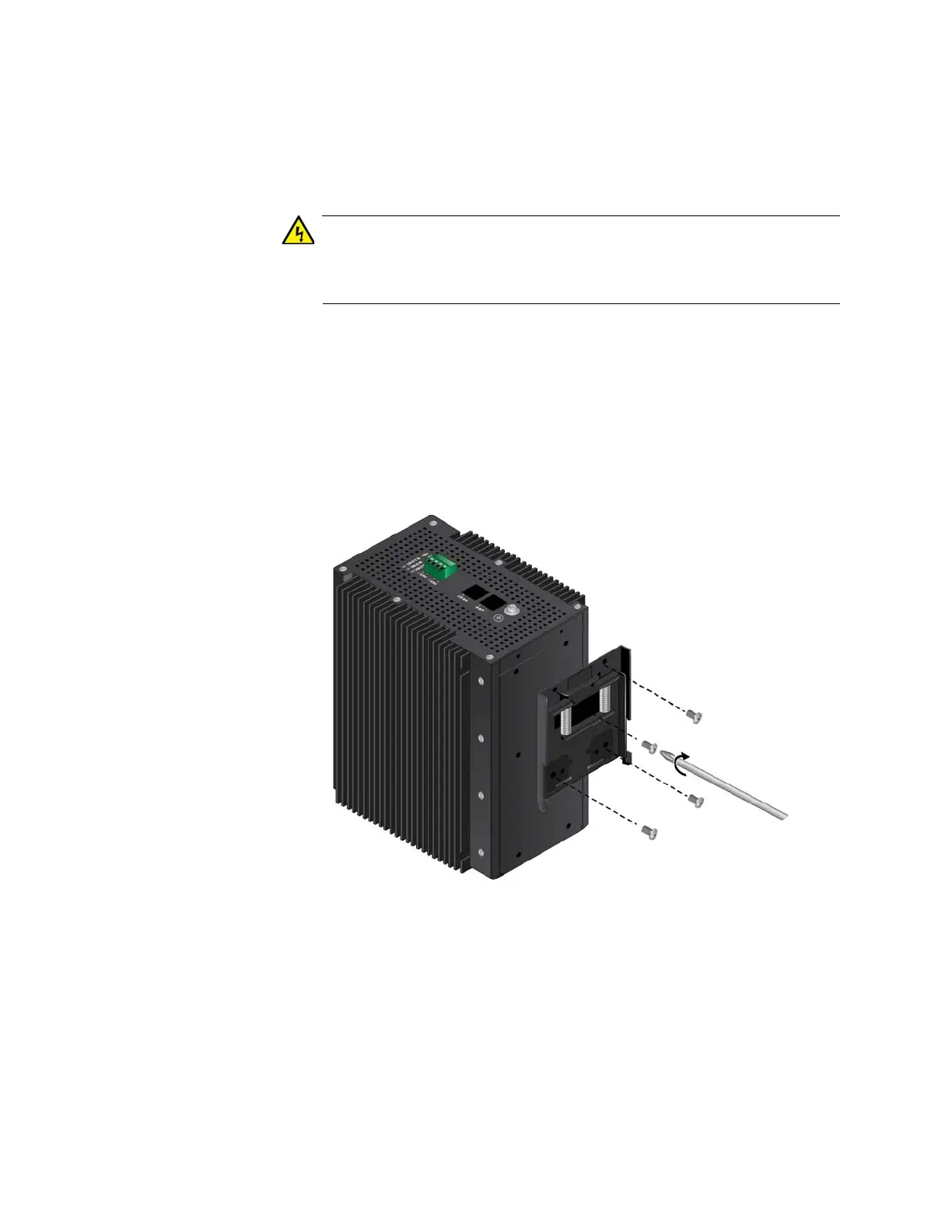

Figure 24. Removing the DIN Rail Bracket from the Switch
