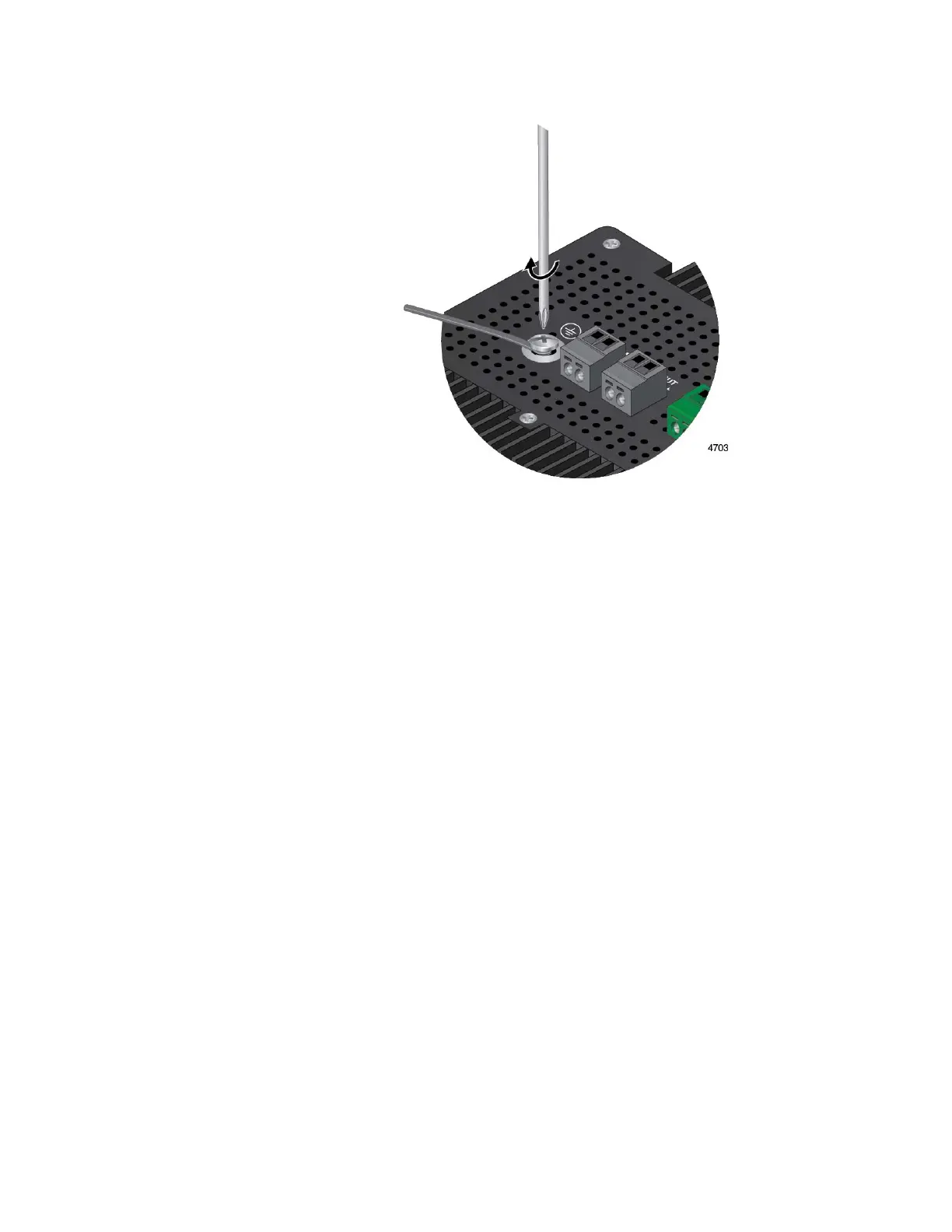

Figure 37. Securing the Grounding Wire to the Switch
5. Connect the other end of the ground wire to a ground point at the
installation site.
6. Do one of the following:
 To wire the alarm connectors, go to “Wiring the ALM IN and ALM
OUT Connectors” on page 99.
 Otherwise, go to “Preparing the DC Power Cables” on page 104.
