Chapter 4: Cabling the Ports
93

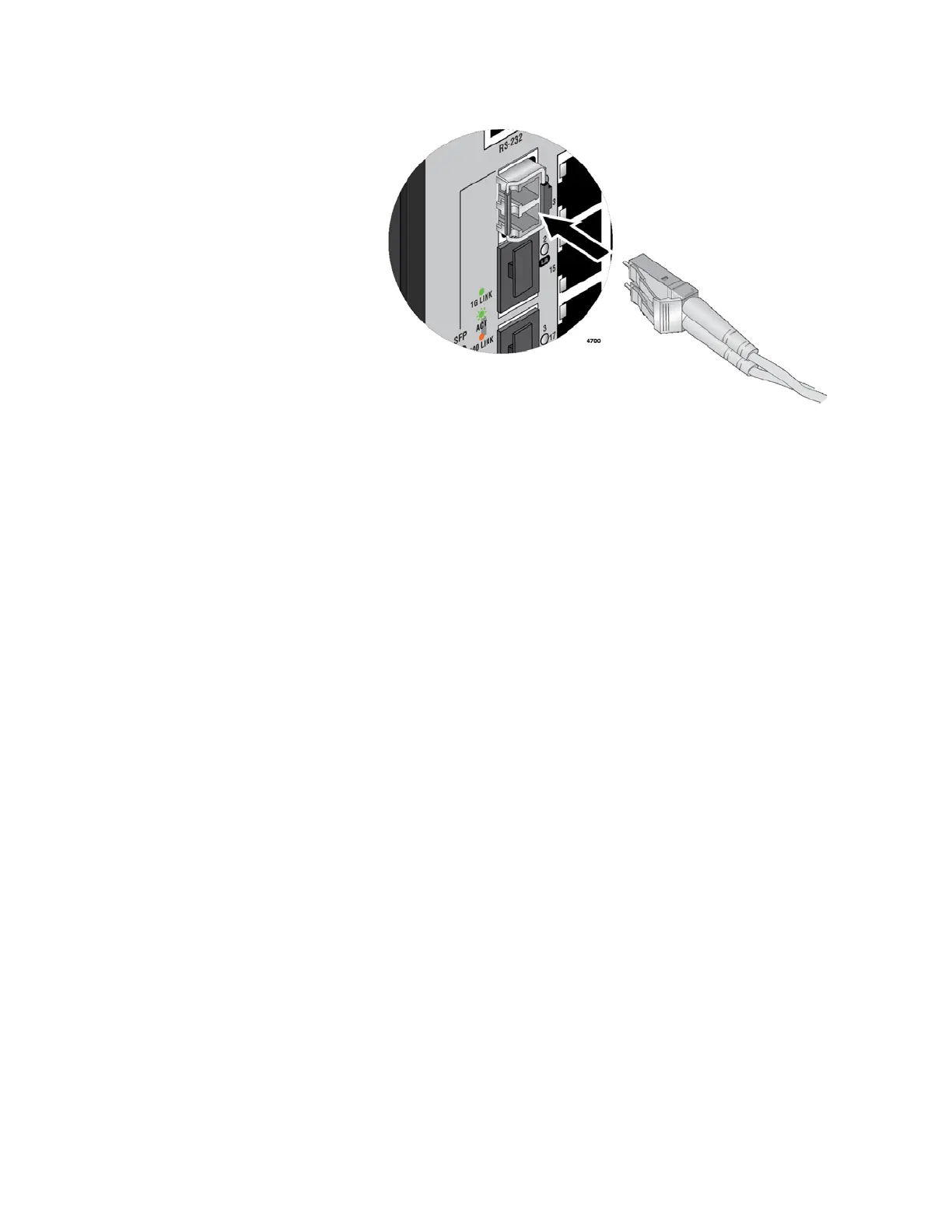

Figure 33. Connecting a Fiber Optic Cable to an SFP Transceiver
7. Repeat this procedure to install and cable the remaining transceivers.
8. Go to Chapter 5, “Powering On the Switch” on page 95.
