Operating
135
0000010038-003- GB
Operating
Changing the protection hood sections
When changing between wide and narrow, it is not necessary to completely ex-
change the hood but only the respective hood section by means of a snap fit.
For exchanging the hood section, press the red pusher down and swivel out the
hood section. Suspend the other hood section and swivel in until the snap fit
engages.

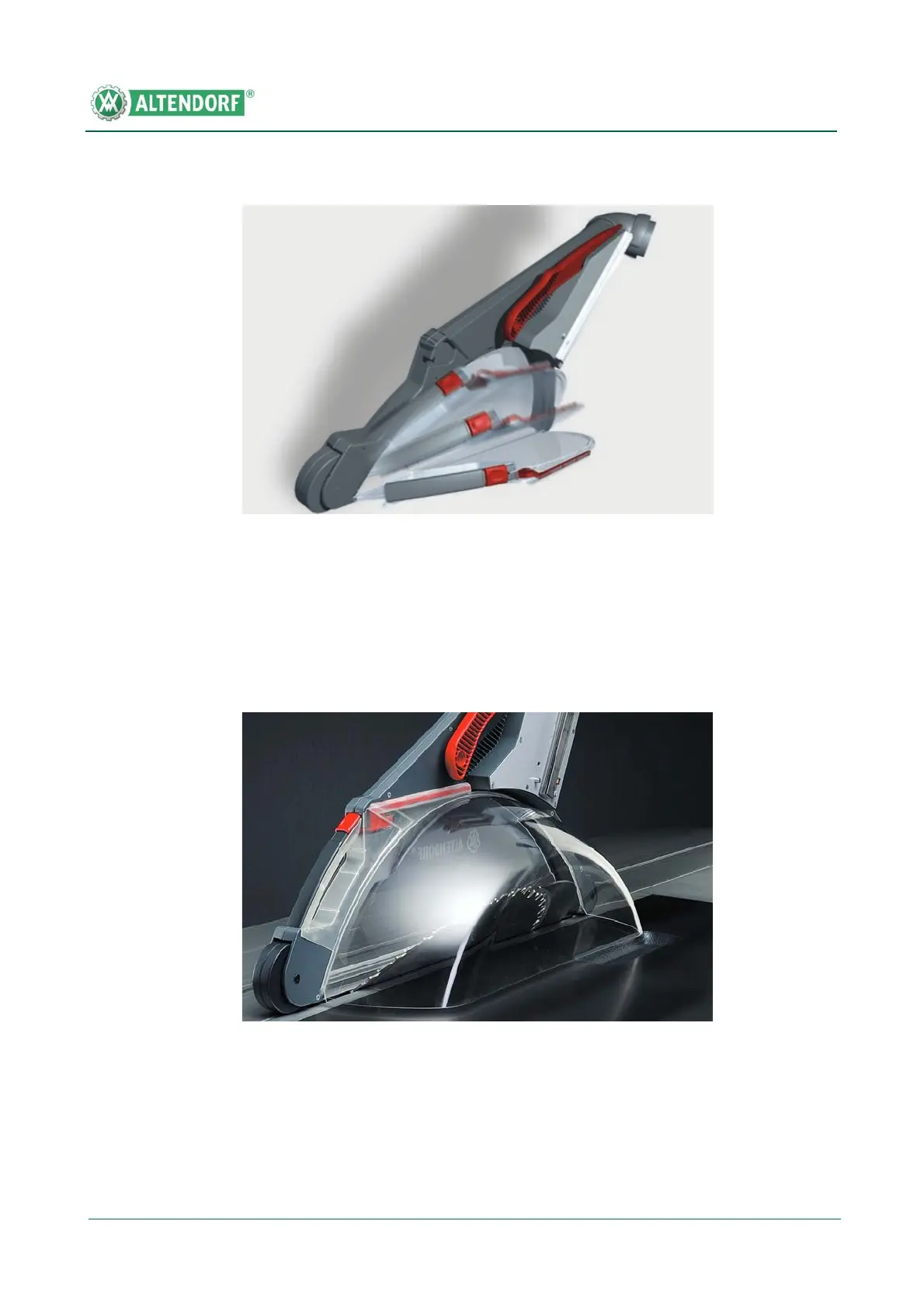

Fig. 6-58 Swivel out the hood section
Fig. 6-59 Large protection hood with wide hood section
