Transport, siting and installation
5.3.4 Cross-slide and crosscut fence
Cross-slide
Installing the cross-slide
The cross-slide must be attached to every point of the outer-lying round bar of
the sliding table, and must be clamped.
Assembly steps:
- Place the supporting pipe of the cross-slide [1] onto the bolt [8] of the telesco-
pic tube
- Tilt the cross-slide to the sliding table, suspend and clamp using the eccentric
lever [2]; for the operation of the eccentric lever, refer to the following pages.

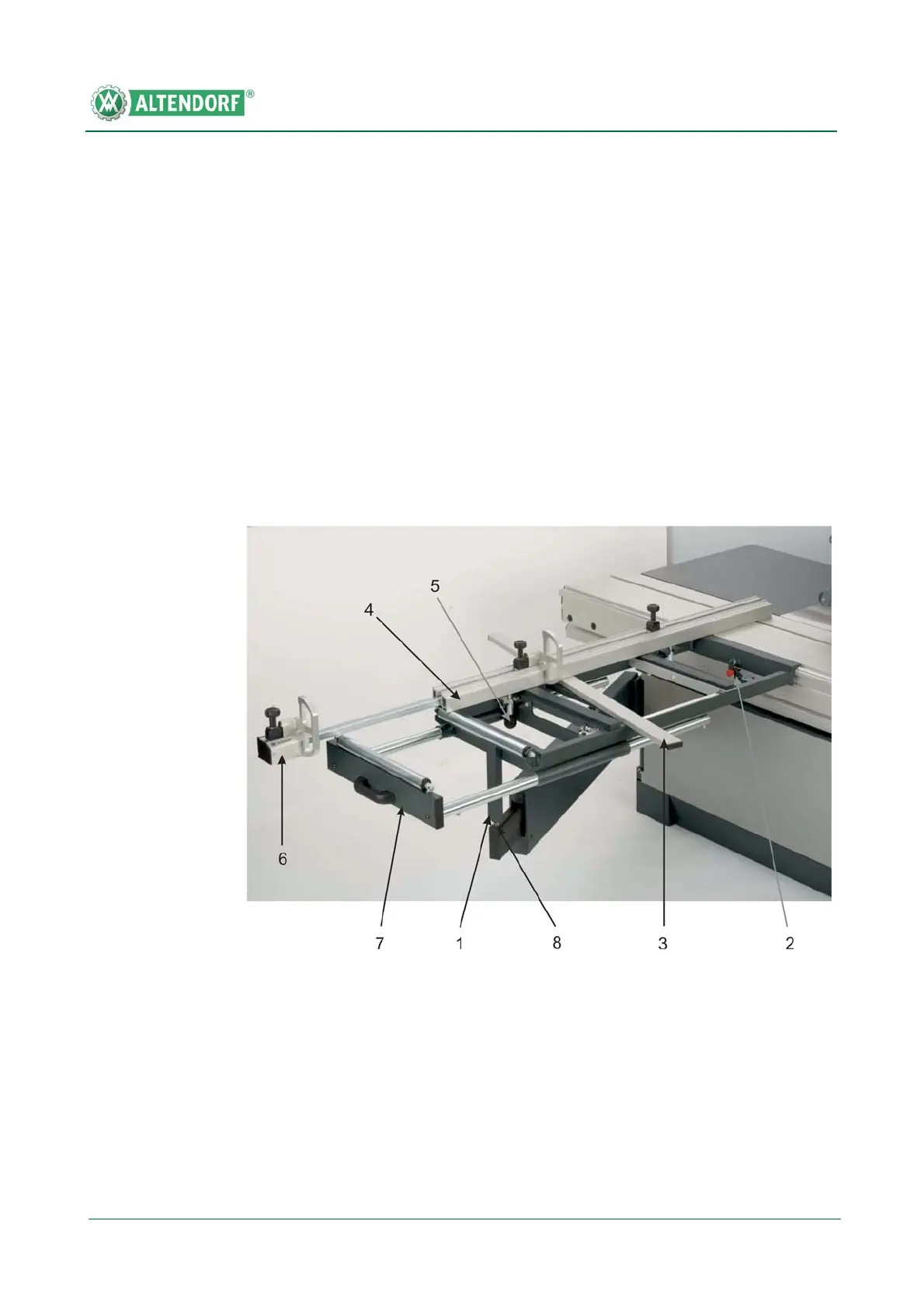

Fig. 5-10 Installing the cross-slide
[1] Support pipe
[2] Eccentric clamping lever
[3] Workpiece support
[4] Crosscut fence
[5] Crosscut fence clamping
[6] Extendable crosscut fence extension
[7] Extendable cross-slide width extension (option)
[8] Support bolt, telescopic tube
