Altendorf F45 ProDrive - Telescopic Tube Assembly

Transport, siting and installation
45
0000010038-003- GB
Transport, siting and installation
5.3 Installation
5.3.1 Telescopic tube for swinging arm
Assembly, telescopic tube Standard/Compact

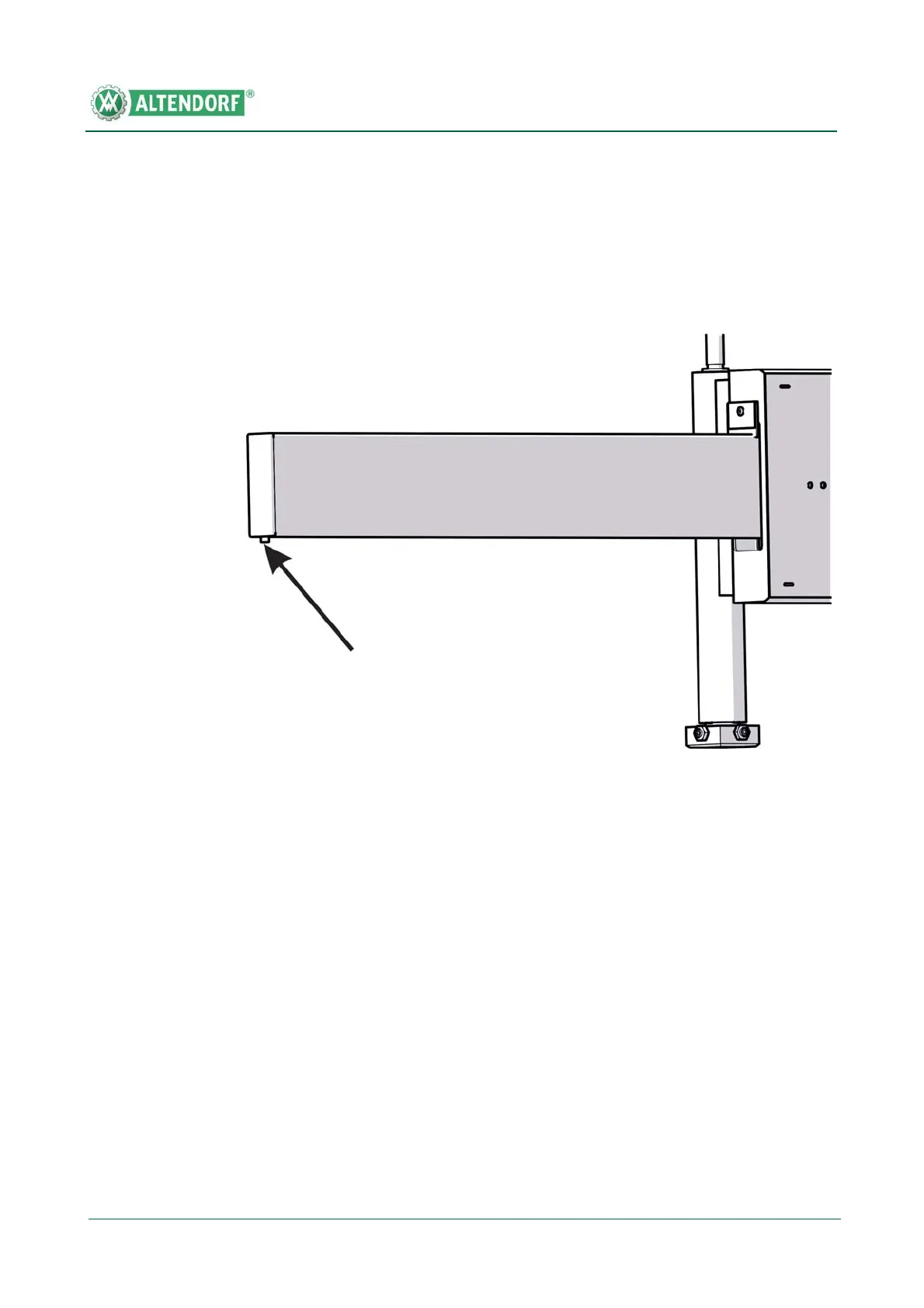

Fig. 5-3 Installing the telescopic tube
[1] Undo the cheese head screw
[2] Push in the telescopic tube from the front through the housing for the swinging arm
[3] Insert and tighten the cheese head screw
