6.6.5 Digital angle and length display DIGIT LD
The angle is shown in the display to an accuracy of 0.01° and the dimensions
set in the 150 mm to 3200 mm range are shown in the display to an accuracy of
±0.1 mm. The length dimensions shown are automatically corrected when the
angle is changed.
Operating the display electronics
Pressing buttons 2, 3, 4 on the right hand side changes the measuring range
on the display electronics. The dimension of the current throw-over stop is
shown in bold. Throw-over stop 1 is firmly connected to the measuring system
and the display unit. Throw-over stop 2 is a flip stop and, when it makes contact
at the left of throw-over stop 1, it is at a distance of approx. 200.0 mm from th-
row-over stop 1. If throw-over stop 2 is pushed onto the length extension, this
results in a measuring range of about 1750 mm to 3200 mm; if necessary, the
length extension can be connected to throw-over stop 1 with the aid of the de-
tent bolt.
Pressing button 1 (RH side) for more than 3 seconds switches over the degree
display.

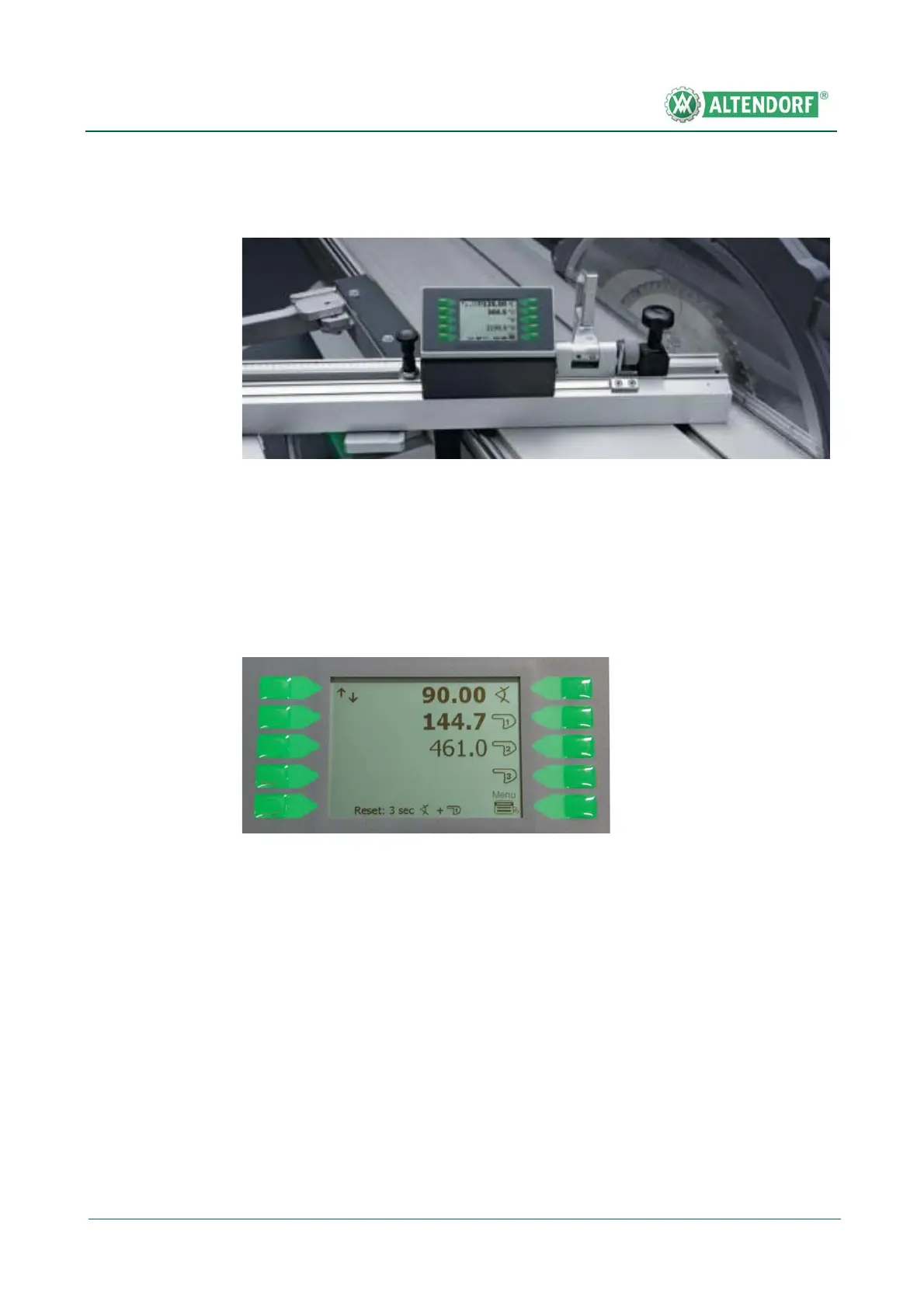

Fig. 6-78 Crosscut-mitre fence display unit WGA_LD
Fig. 6-79 Display unit
