Transport, siting and installation
64
Transport, siting and installation
0000010038-003- GB
5.3.5 Sliding table

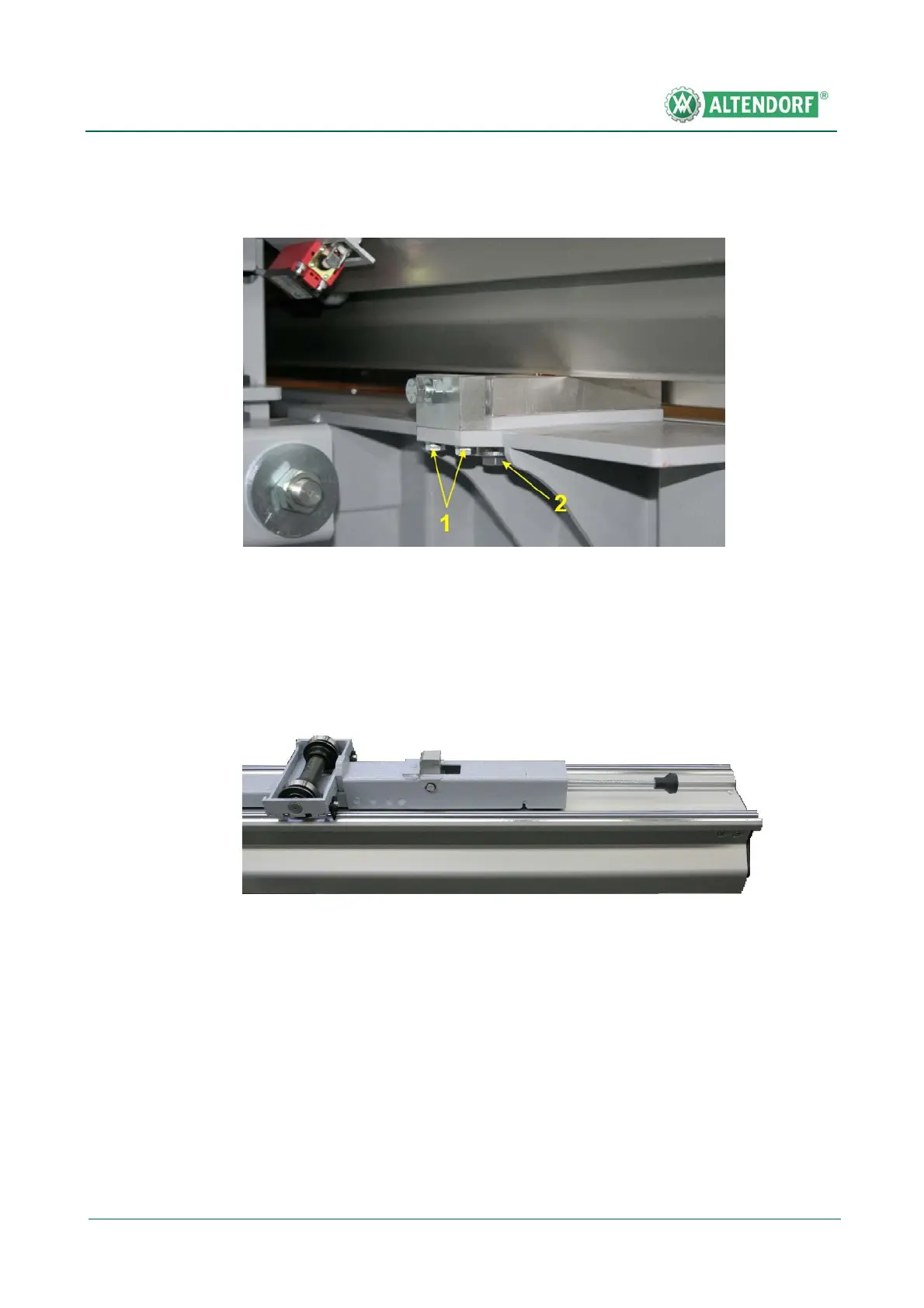

Fig. 5-25 Bottom carriage stop
[1] Place the bottom carriage on the machine frame and push against the stop screws.
[2] Screw on the bottom carriage using the outer fixing screws.
[3] Only tighten the middle fixing screw loosely.
Fig. 5-26 Installing the middle carriage
[1] Place the middle carriage on the bottom carriage so that the interlock is pointing to
the right.
[2] Push the middle carriage to the right until the 1st double roller is still just resting on
the round bars. If this is not observed, in the case of the TIP-SERVO-DRIVE the
end position sensors could be destroyed when the top carriage is pushed on!
