5.4.2 Sub rollers on the sliding table
Check the sub-rollers
The sub-rollers must run smoothly against the start slope at the start and end of
the raceway. They should be set so that they can be held by hand with noticea-
ble force and that they slip while the sliding table is moved.
Setting of the sub-rollers
The sub-rollers have eccentric bearings and can be adjusted.
The sub-rollers are set so that they can be held by hand with noticeable force
and that they slip while the sliding table is moved. Adjusting them too tightly will
result in stiff movement of the sliding table, and can lead to unwanted cutting
results.
Repeat this process for all sub-rollers.

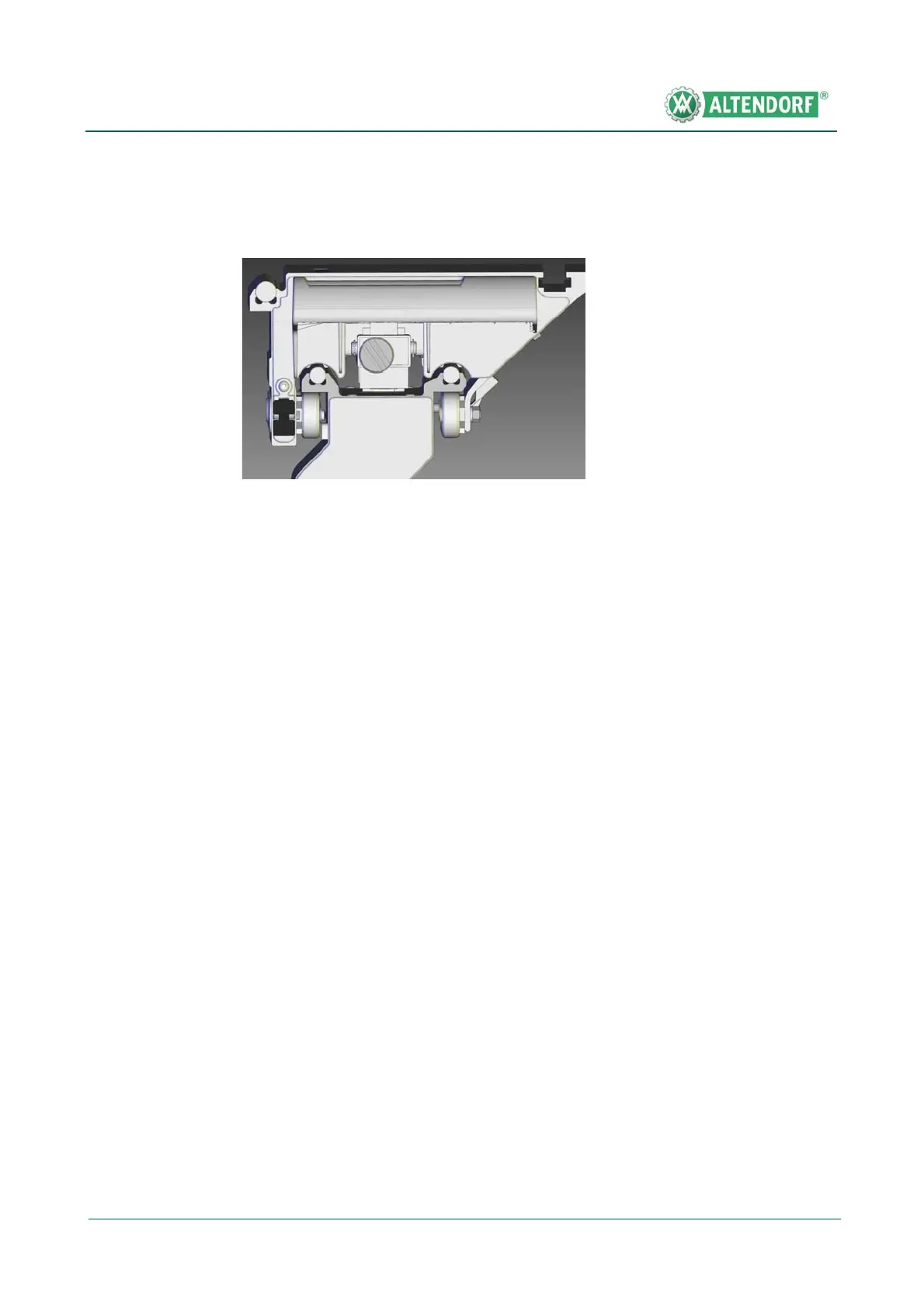

Fig. 5-41 Sub-rollers
