6.6.11 LASER cutting line display
The laser beam shows the run of the cutting line over a length of approx. 5000
mm. For trimming or cutting along a marked line (e.g. for stairs/steps) in parti-
cular, valuable set-up time and material can be saved.

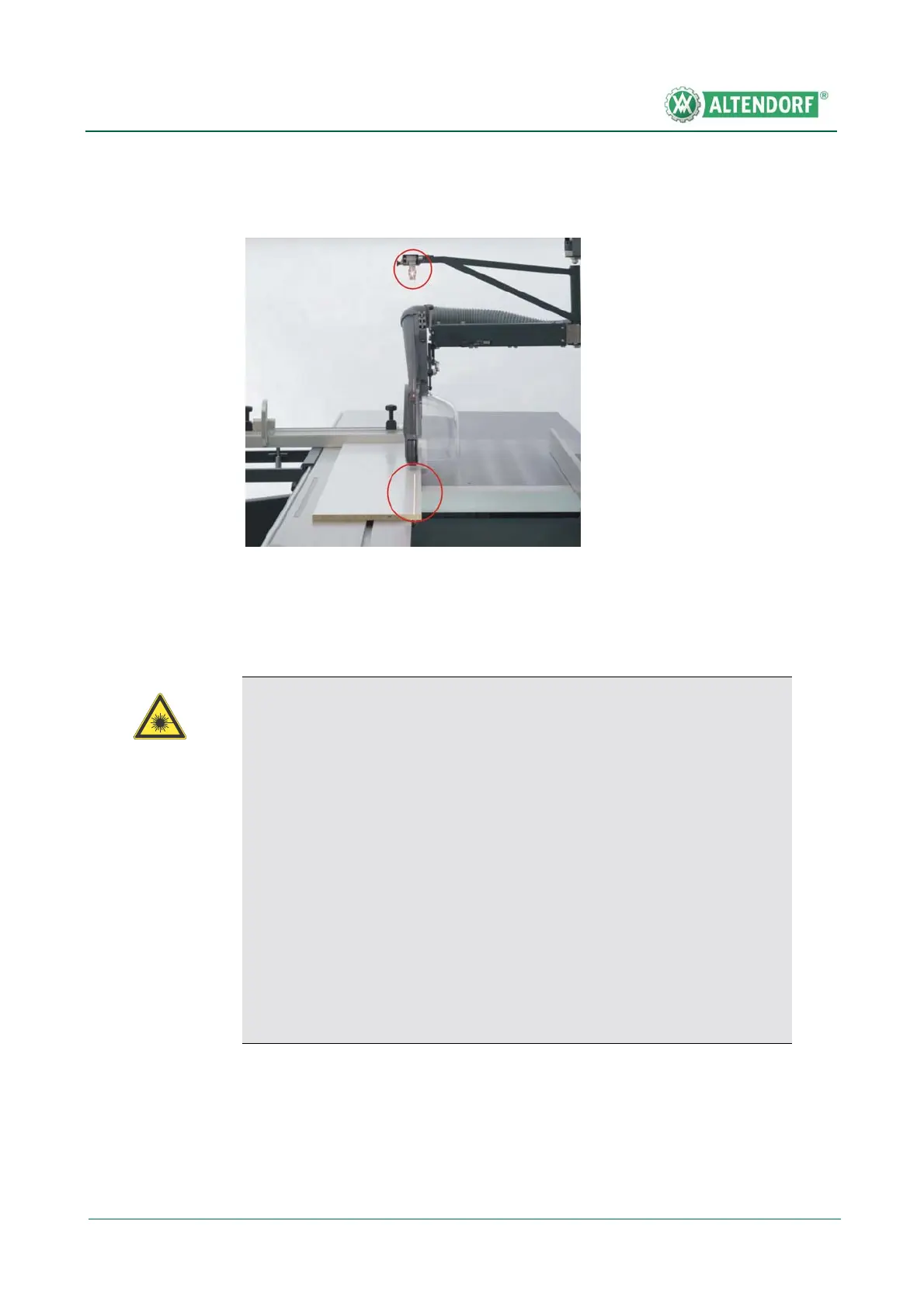

Fig. 6-100 Laser cutting line display
Warning!
Laser beams!
The laser creates a red luminous beam with a width of approx. 3 mm. The
intensity of this laser is sufficiently low that looking into it briefly is harm-
less. The eye is protected by its natural reflex to close.
Never observe the laser beam using optical aids or instruments, e.g.
glasses, binoculars or magnifying glasses etc. which could bundle the
light, and then possibly damage the eye.
• Never attach mirror surfaces in the laser area!
• Never carry out any modifications to the laser optics!
• Furthermore, make sure that the warning signs attached to the laser
are always legible. They must not be removed!
• Never replace the laser with a laser unit of a different type!
• Defective laser units may only be repaired by the manufacturer!
