Transport, siting and installation
5.4 Basic machine setting
Basic machine setting is carried out at our factory during final assembly. It may
be necessary to correct the machine's basic settings due to removal of various
assembly groups, and transport and installation on site. The machine elements
to be checked are described below.
5.4.1 Swinging arm
Check
Rest the swinging arm against the machine frame, fully extend the telescopic
tube of the swinging arm and check dimensions A and B. Set dimensions A and
B with a tolerance of 0.5 mm; if necessary correct the setting with EX 1 and EX
2.
The dimension between the bottom edge of the crosscut fence profile and the
top edge of the top carriage profile (see fig. 2) is a feature for the tolerance of
the swivel arm setting. The dimension must not exceed the cut length possible
with the cross-slide between 0.1 and 0.9 mm (check with feeler gauge).

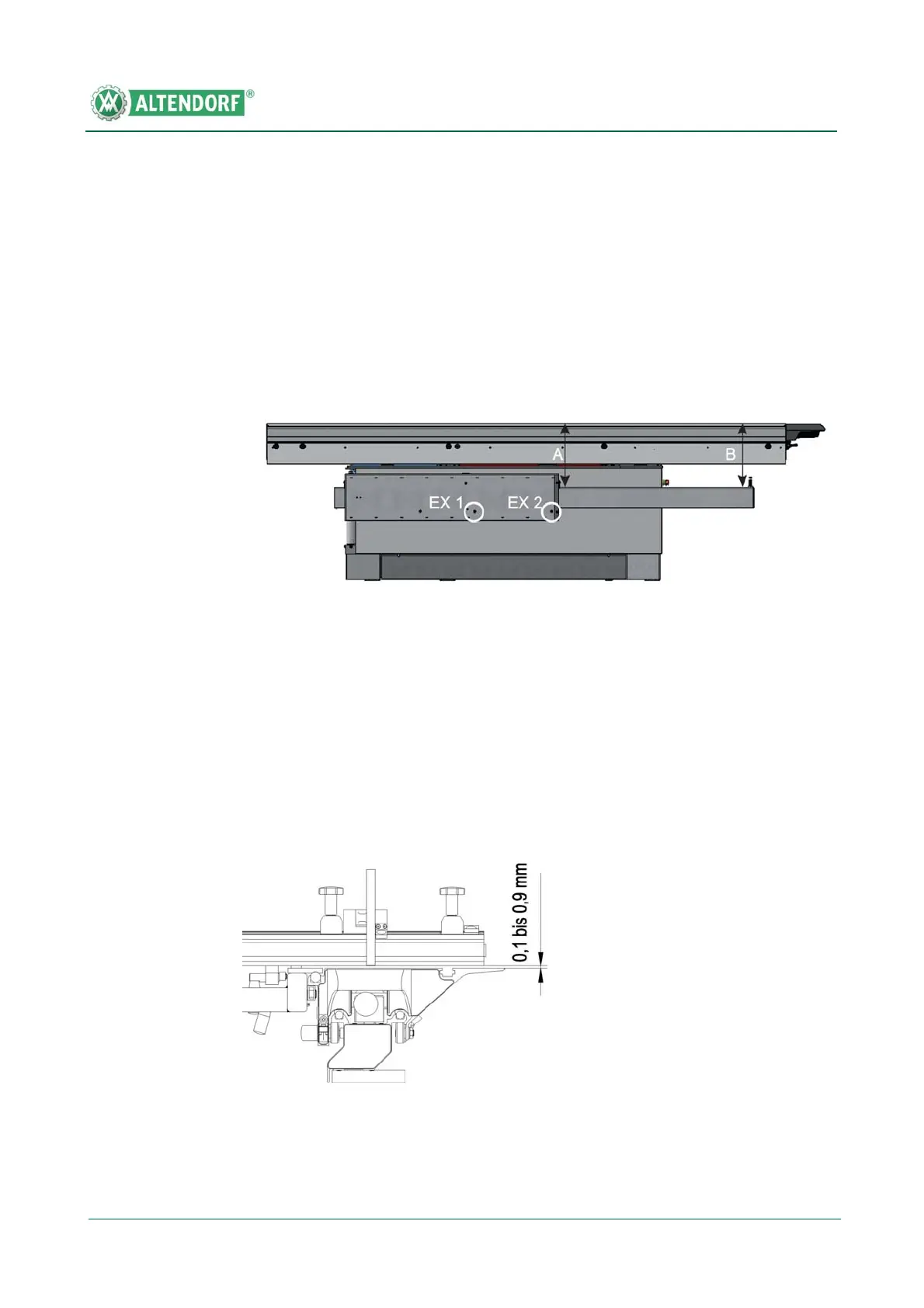

Fig. 5-39 Swivelling arm, check
Fig. 5-40 Crosscut fence setting
