6.1.2 Rip fence
For cutting parallel, the rip fence is pushed up to the required dimension. The
set dimension is read off from the edge of the aluminium profile.
The dimension scale can be adjusted to the individual tool thickness after re-
leasing the knurled screw.
Stop fences

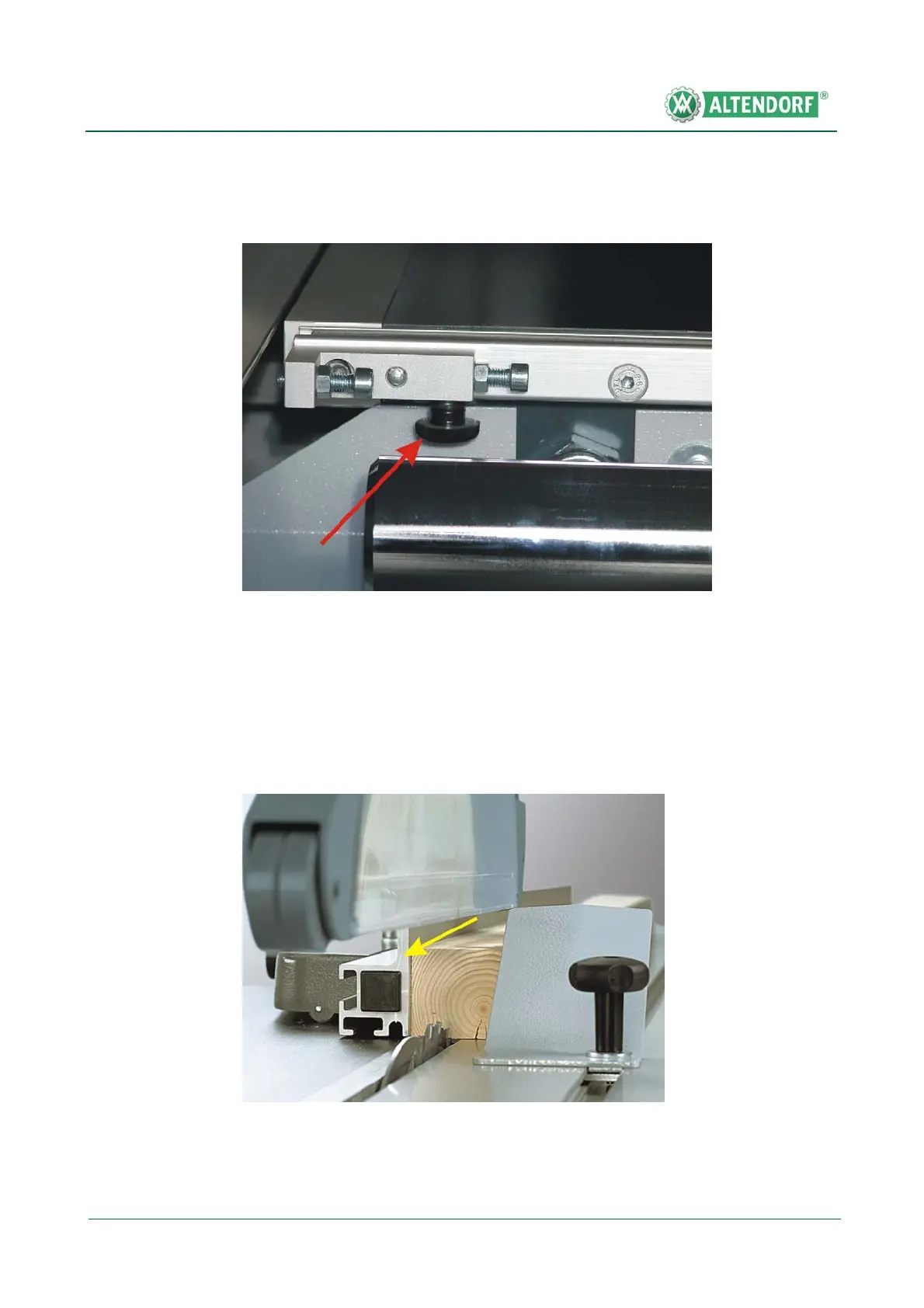

Fig. 6-5 Position of the clamping screw
Fig. 6-6 Upright position of the stop fence
