Operating
Length compensation
By shifting the crosscut-mitre fence, the length dimension can be adjusted for
the set angle.
Changing the crosscut-mitre fence
• Release the clamping screw and clamping lever
• Push the crosscut-mitre fence to the 2nd position
• Push the guide piece of the eccentric clamping system into the pivot
groove as far as it will go and clamp it
• Tighten the clamping screws

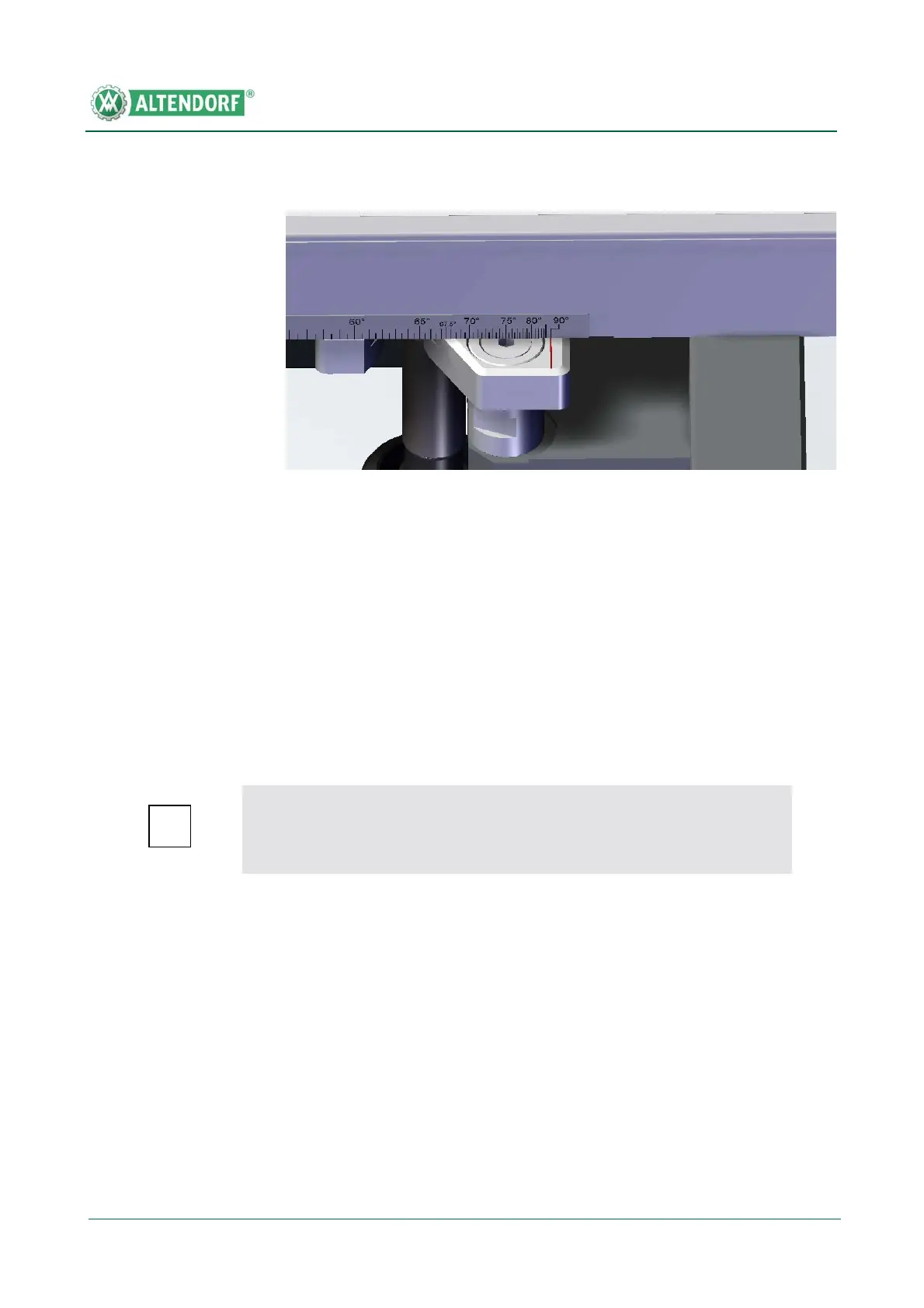

Fig. 6-4 Length compensation scale
i
Note!
When dimensions need to be adjusted with the stop bar, make sure that
the flip stop is against the fence of the extension!
