Function description of the crosscut-mitre fence
• The crosscut-mitre fence can be swung by 49° (angle indicated on scale),
plus angle-dependent adjustable length compensation via a scale.
• Ball bearings run in the sliding table groove, preventing the stop fence
coming into the cutting plane when swung
• Clamping of the stop profile at the pivot and on the degree scale
• Additional clamping at the 90° position
• Movable, fixable C profile as an additional workpiece support
Operating elements
Adjusting the angle
• Release the clamping screws
• Set the crosscut-mitre fence to the desired angle
• Carry out length compensation
• Tighten clamping screw 1
• Set and tighten clamping screw 2

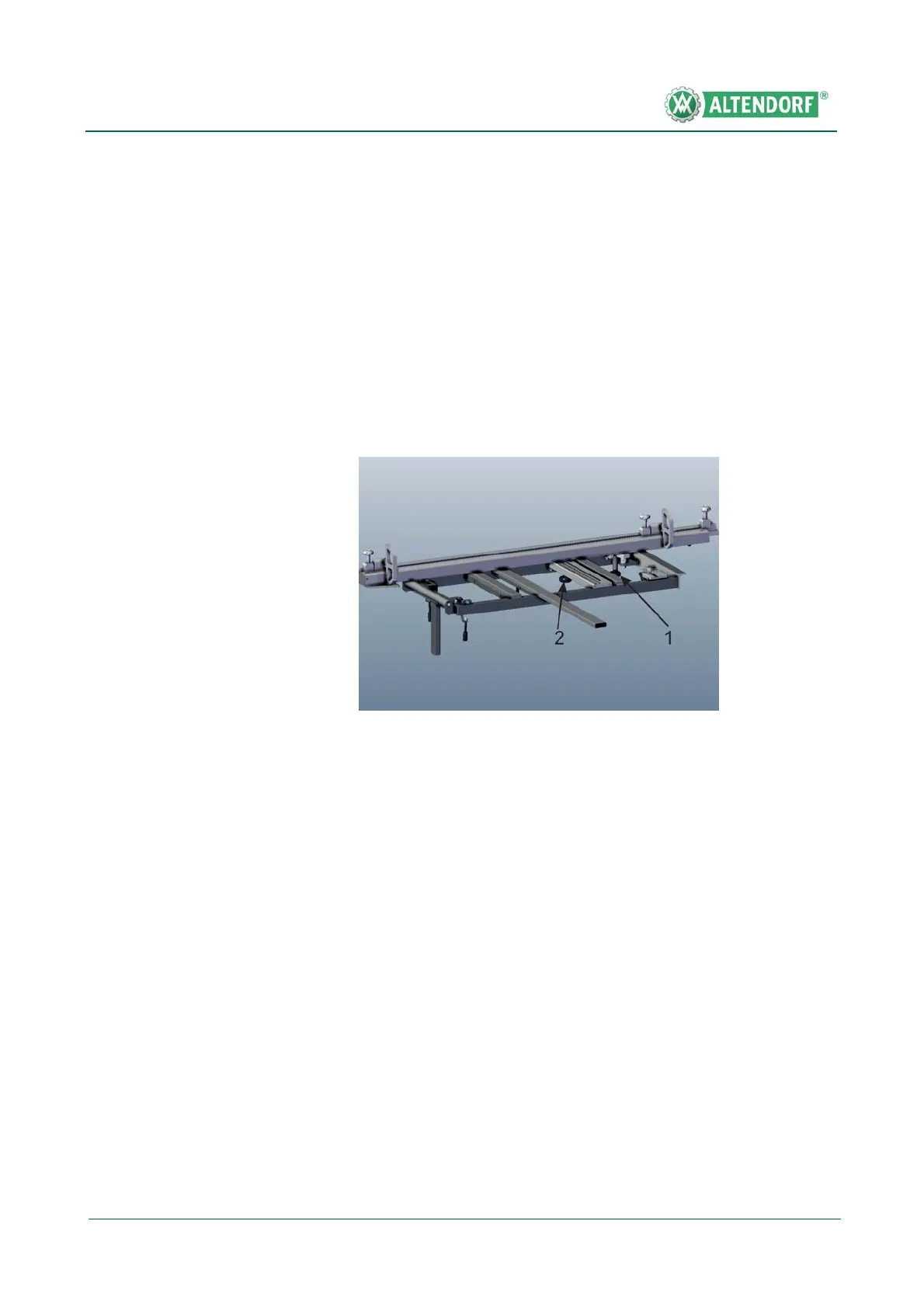

Fig. 6-3 Position of clamping screws
[1] Clamping screw 1
[2] Clamping screw 2
