Operating
147
0000010038-003- GB
Operating
6.6.3 Mitre fences
Single-sided mitre fence
The fence can be fitted quickly and easily to the sliding table with an eccentric
clamping system. Dimension scales are inclined in order to stay in the opera-
tor's field of vision. Crosscutting to 2500 mm.
Double-sided mitre fence DUPLEX

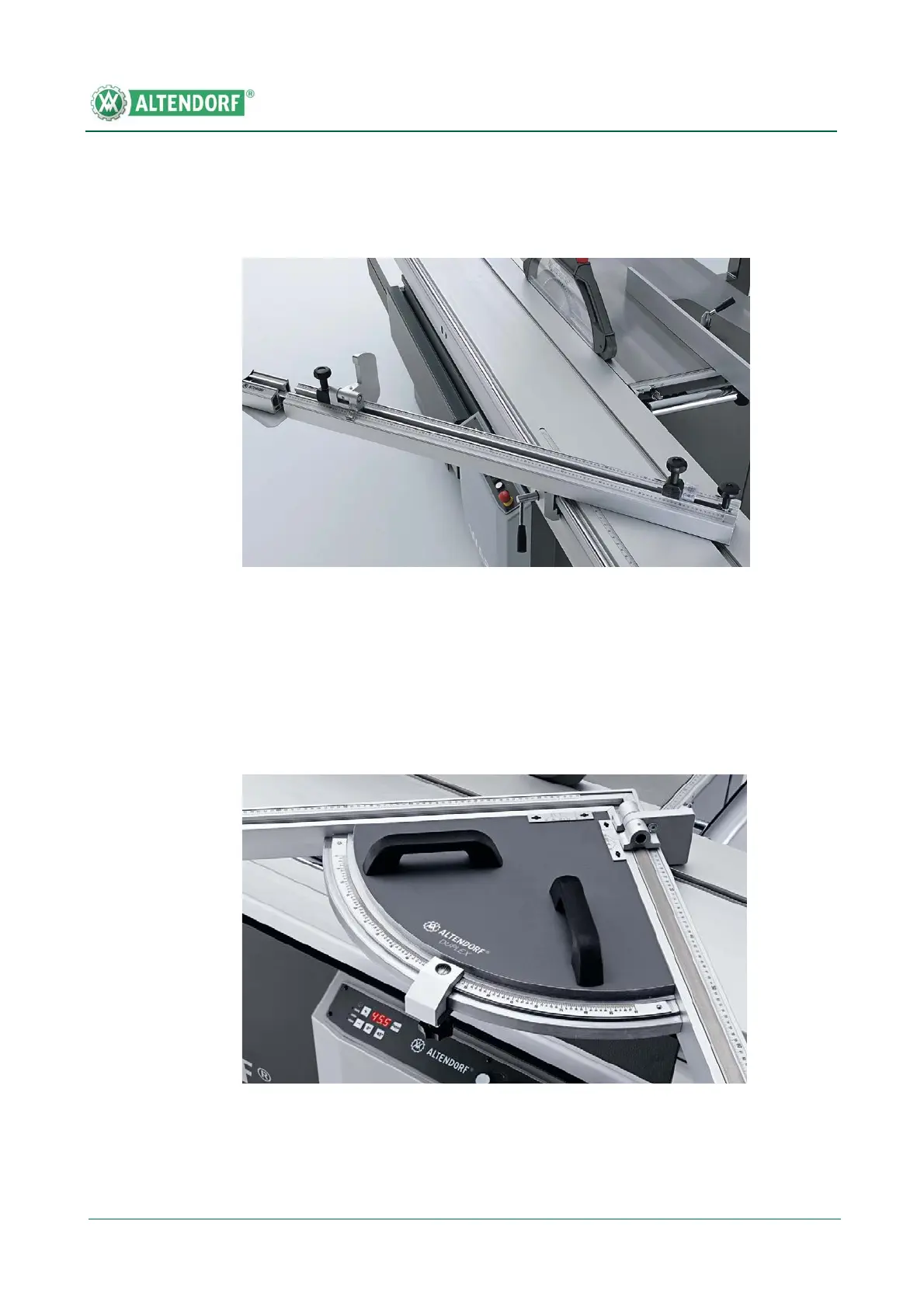

Fig. 6-71 Single-sided mitre fence
Fig. 6-72 Double-sided mitre fence DUPLEX
