Transport, siting and installation
49
0000010038-003- GB
Transport, siting and installation
5.3.3 Rip fence
Assembly of TPV

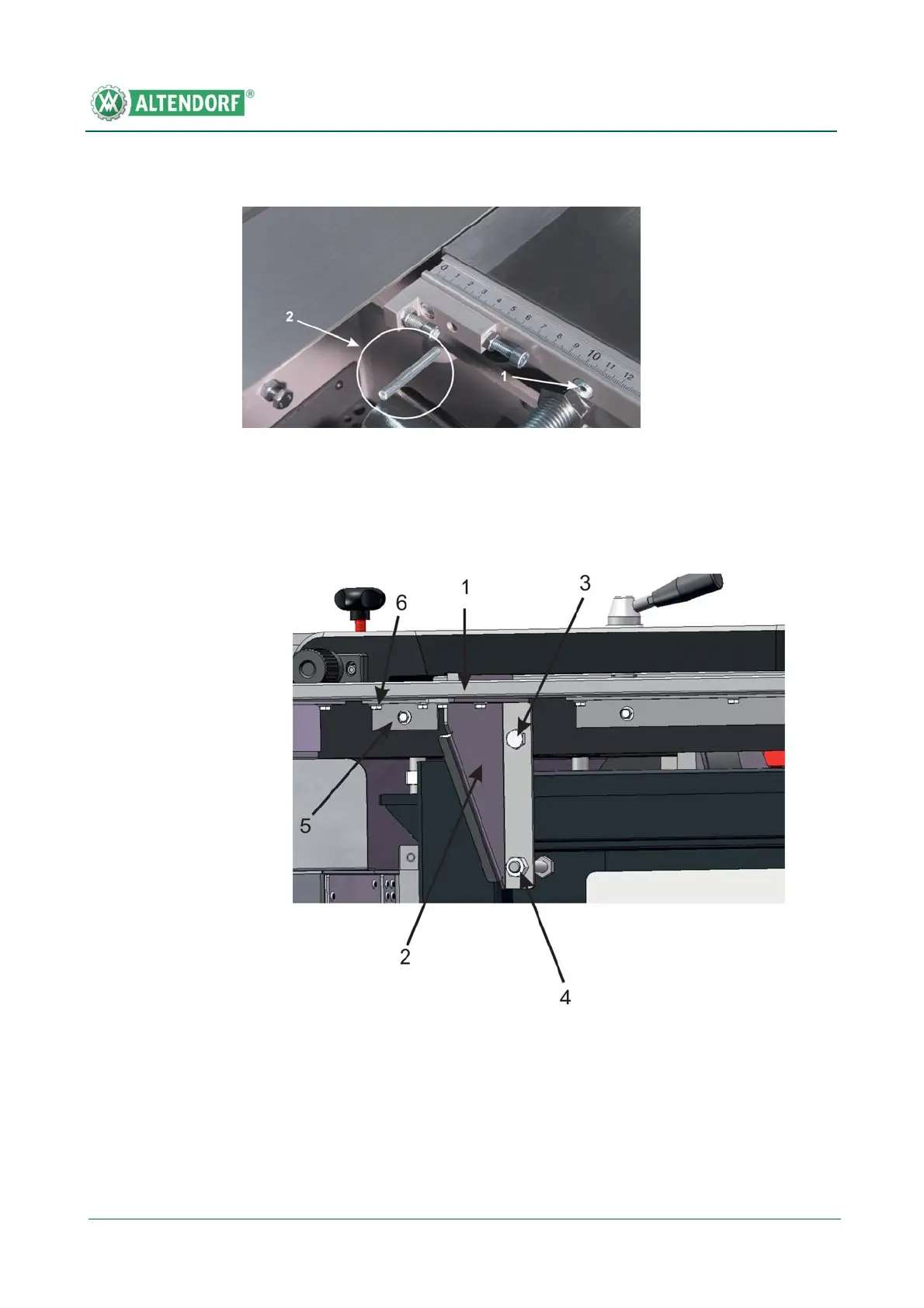

Fig. 5-8 Installing the measuring bar
[1] Fit the measuring bar easily with M6x30 countersunk screws (1)
[2] Knock a 6x45 clamping pin (2) through
[3] Tighten the countersunk screws(1)
Fig. 5-9 Installing the main table width extension
[1] TPV board
[2] Support arm
[3] Fastening screw M10
[4] Support screw
[5] Stationary installed, adjusted bracket on the cast table top
[6] Fastening screws for TPV on bracket
