6.6.8 Workpiece hold-down device
Manual quick-action clamp
The manual quick-action clamp fastens the workpiece to the crosscut fence
can be fastened along the groove on the sliding table top at any point. For this
purpose, use the handle on the top end of the round bar to open the mecha-
nism until the sliding block can be pushed laterally into the carriage groove.
Use the handle to fasten the quick-action clamp to the desired position applying
slight force. Undo the lateral handle and set the quick-action clamp to a suitable
height, subsequently fasten by means of the handle. Now the workpiece is
clamped by means of the threaded rod on the extension arm. Use the clamp
handle to clamp or unclamp the workpiece.
Klemmfix

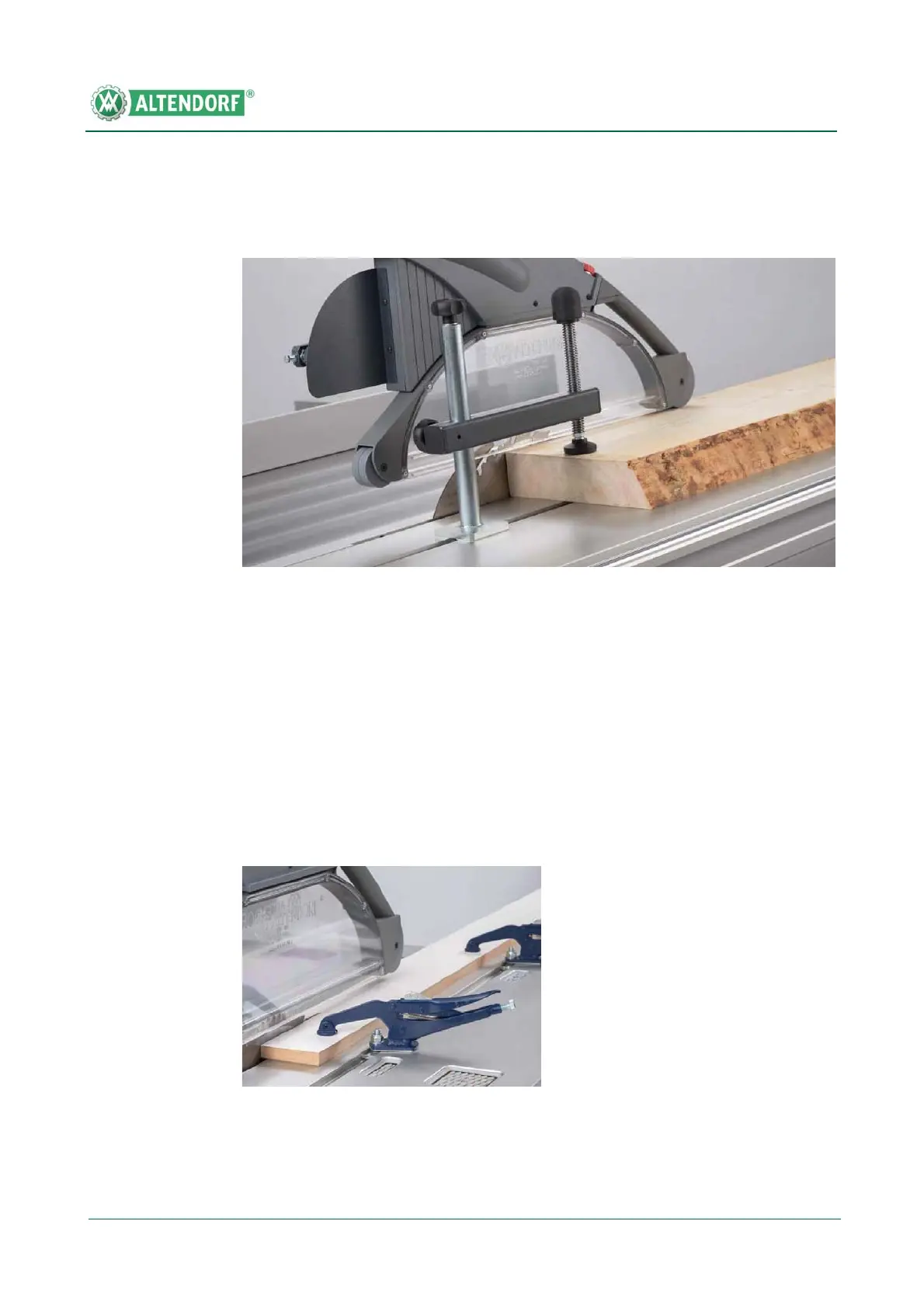

Fig. 6-92 Manual quick-action clamp
Fig. 6-93 Altendorf Klemmfix
