Operating
124
Operating
0000010038-003- GB
6.4.8 CNC crosscut fence UNO
To adjust the crosscut fence, actuate the function key and enter a new value.
When you press the yellow START button, the dimension field changes colour.
The value is displayed in green once the position is reached.
If a manual rip fence is equipped, the correction values for the crosscut fence
are displayed as a function of the tilt angle.

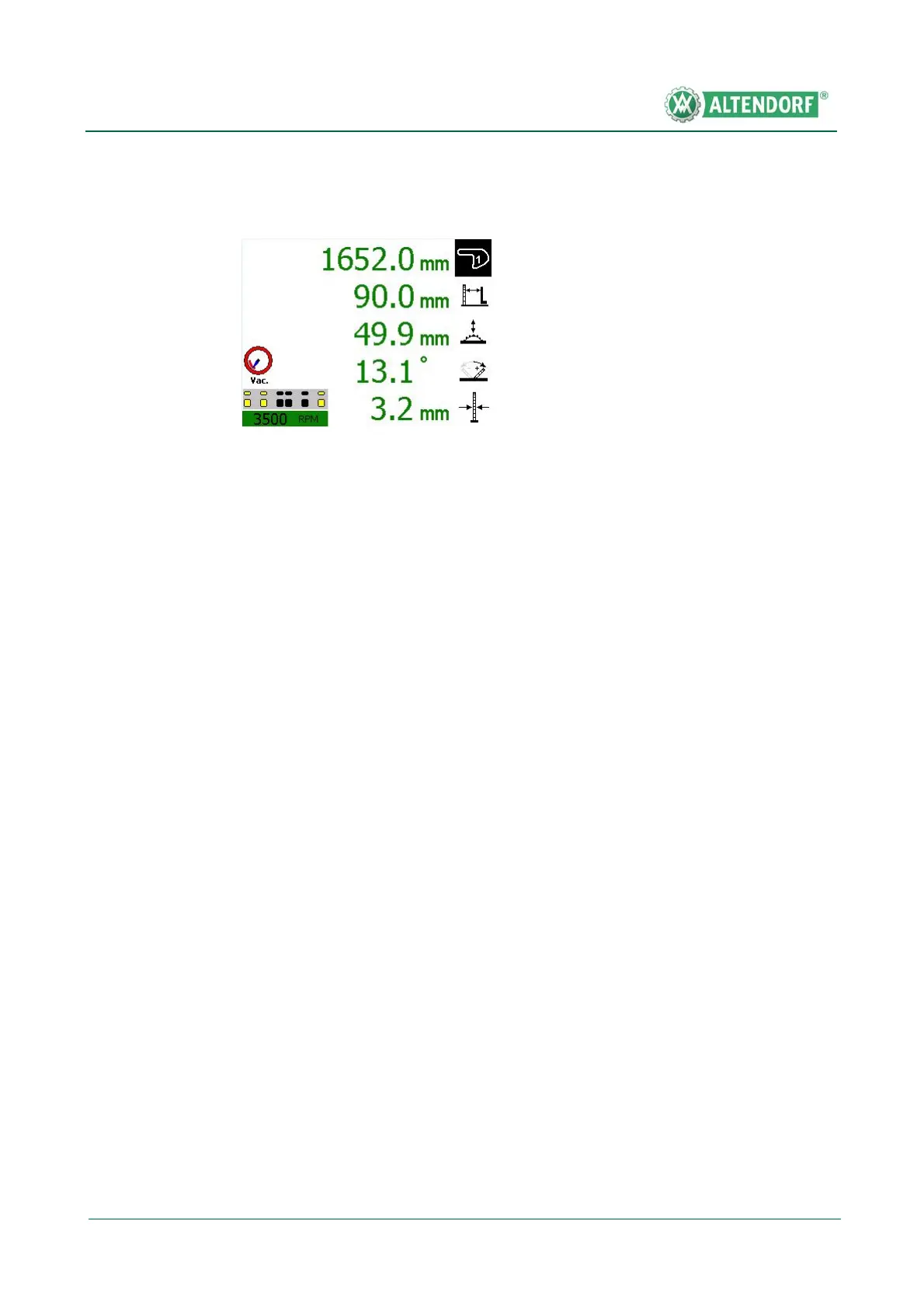

Fig. 6-45 CNC crosscut fence UNO
