Transport, siting and installation
78
Transport, siting and installation
0000010038-003- GB
5.4.4 Cross-slide height
Check
Push a piece of cardboard of approx. 0.5 mm thickness between the crosscut
fence and the sliding table; it must be possible to move the cardboard freely in
every position. The crosscut fence must be parallel to the surface of the sliding
table!
Setting
Adjust the height of the swinging arm bolt and fix it with a lock nut. Check that
the swinging arm is parallel if the gap changes in accordance with the position
of the sliding table!

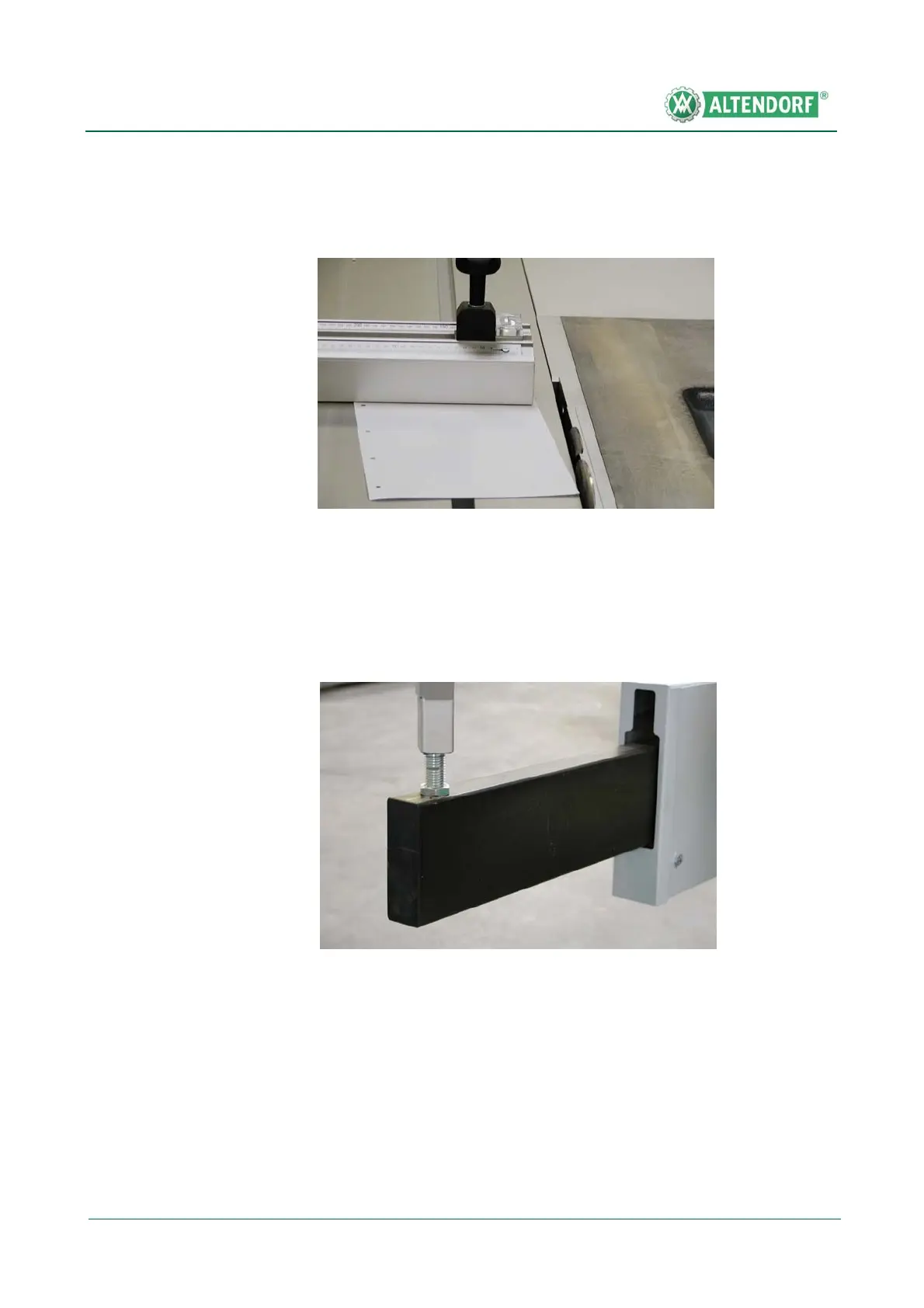

Fig. 5-43 Checking the cross-slide height
Fig. 5-44 Adjusting the cross-slide height
