Transport, siting and installation
41
0000010038-003- GB
Transport, siting and installation
5.2 Safety measures before use/installation
Installation site
No special foundations are required at the installation site for the sliding table
saw. The floor must have a load bearing strength suitable for the machine
weight and should be flat and level.
Select an installation site that provides enough clearance around the sliding ta-
ble saw, allowing for the space requirements shown in the figure and the size of
the workpieces to be cut. In addition, observe the safety clearances to parts of
the building and other machines in order to eliminate the risk of crushing the
operator or other personnel.

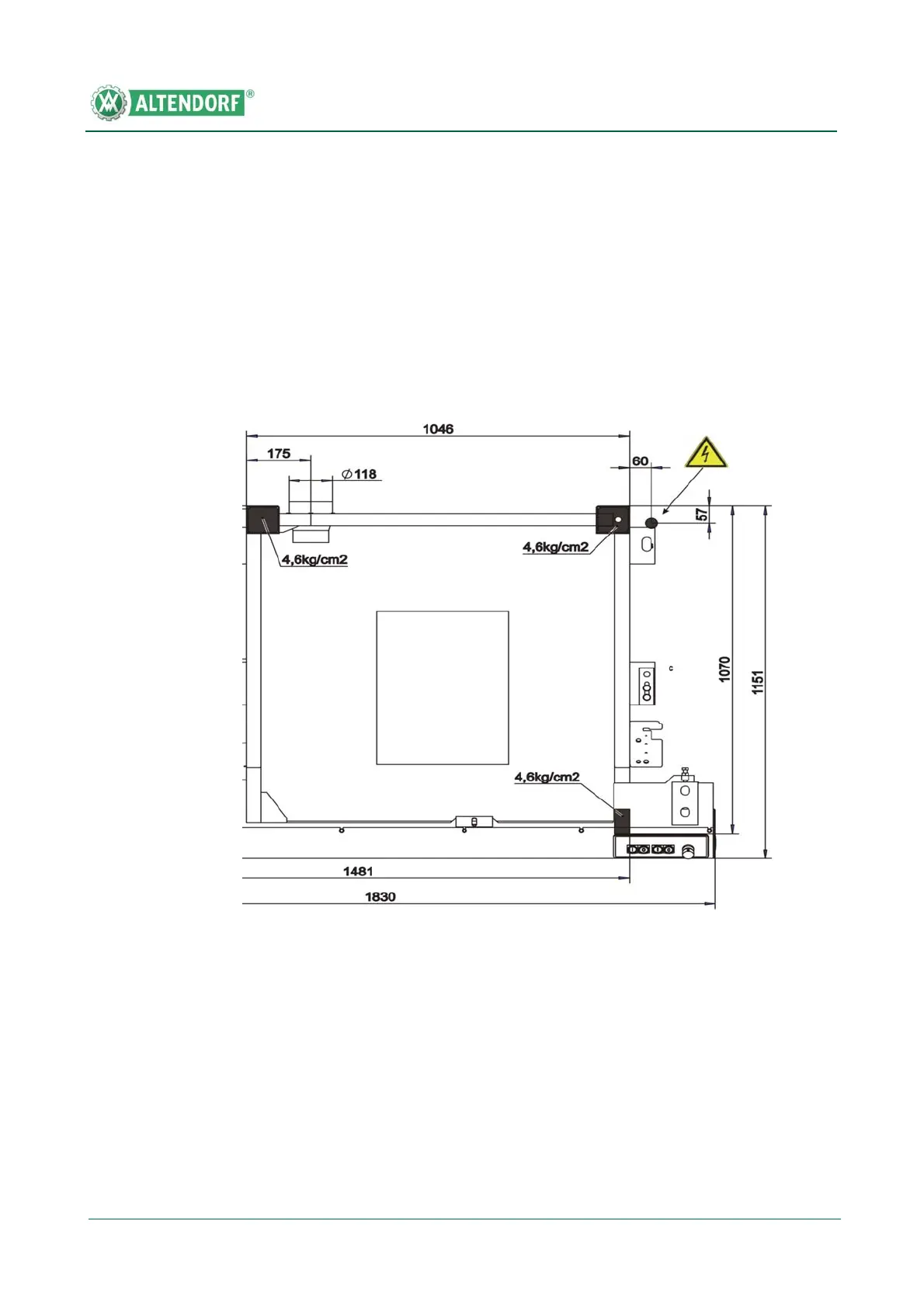

Fig. 5-1 Foundation plan
