Transport, siting and installation
73
0000010038-003- GB
Transport, siting and installation
5.3.7 Connecting the extraction system (customer side!)
Total extraction system connection D = 140 mm
Vmin = 1150 m
3
/h at 20 m/s
Bottom extraction connection D =120 mm
The hoses and Y-tube are not supplied as standard with the machine.
The dust emission values – measured in accordance with the “Principles for
Testing Dust Emission (Workplace-Related Dust Concentration) from Wood-
working Machines” issued by the German trade association's technical commit-
tee for wood – are under 2 mg/m
3
. When the machine is attached to a correctly
functioning extraction system with an air speed of at least 20 m/s (measured at
the connection socket) you can assume it is and will stay compliant with the
technical reference concentration (TRK) value for wood dust that is in force in
Germany. For perfect and safe operation, the machine must be connected to
the extraction system at the extraction sockets (rear of machine frame and pro-
tection hood support). The minimum air speed at the extraction sockets must
be 20 m/s.
The 80 mm extraction hose from the hood to the connection socket on the sup-
port tube is not supplied as standard. The extraction socket and hoses are not
supplied as standard!

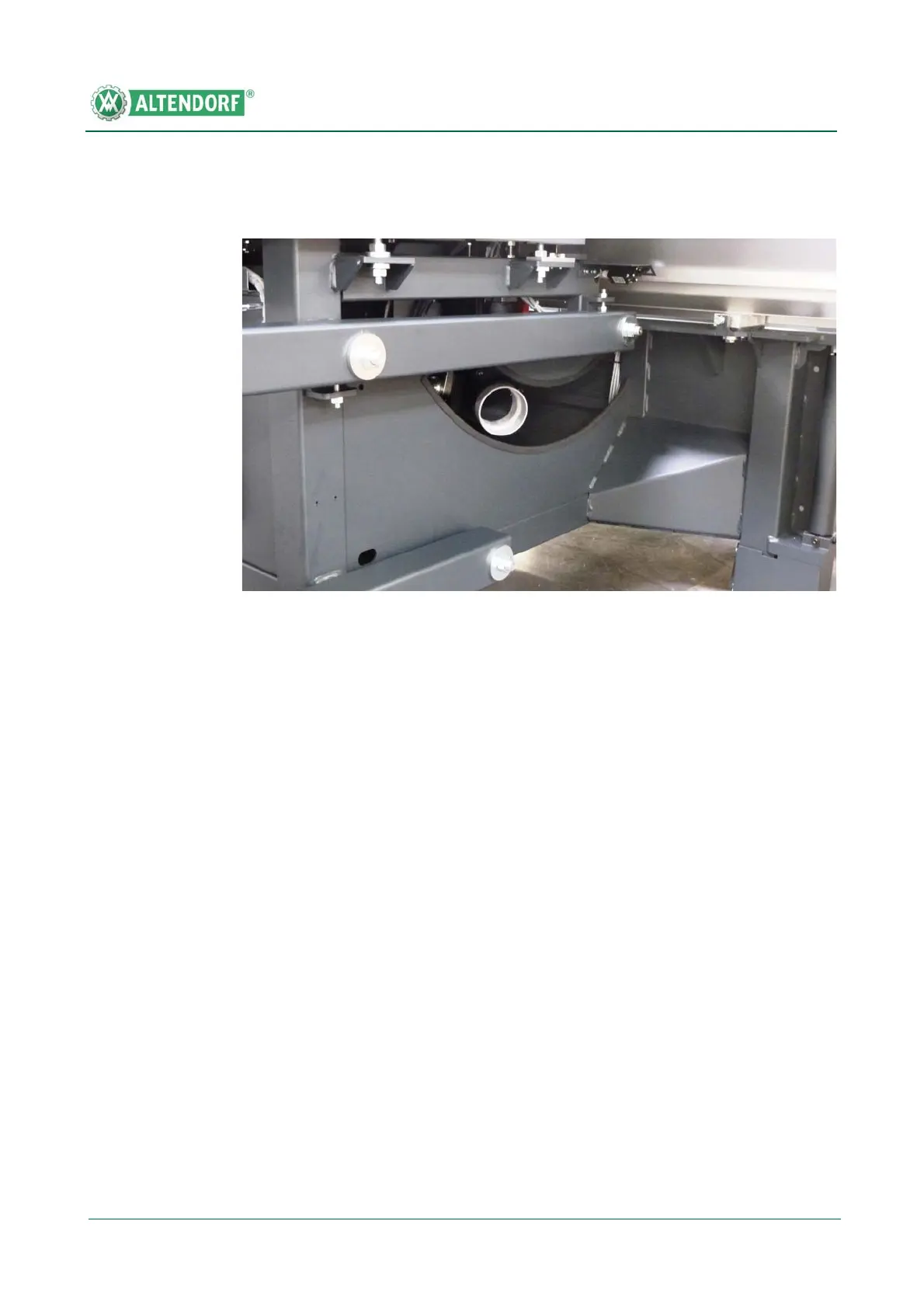

Fig. 5-38 Bottom extraction connection
