Transport, siting and installation
77
0000010038-003- GB
Transport, siting and installation
5.4.3 Main table
Checking the main table
Place a rip fence straight edge on the sliding table, and move the table into the
middle position. Move the sliding table forward and backward; the main table
must be approx. 1/10 mm lower.
Adjusting the main table
Release the lock nuts (1) of the 4 stay-bolts, adjust the main table, and tighten
the lock nuts.

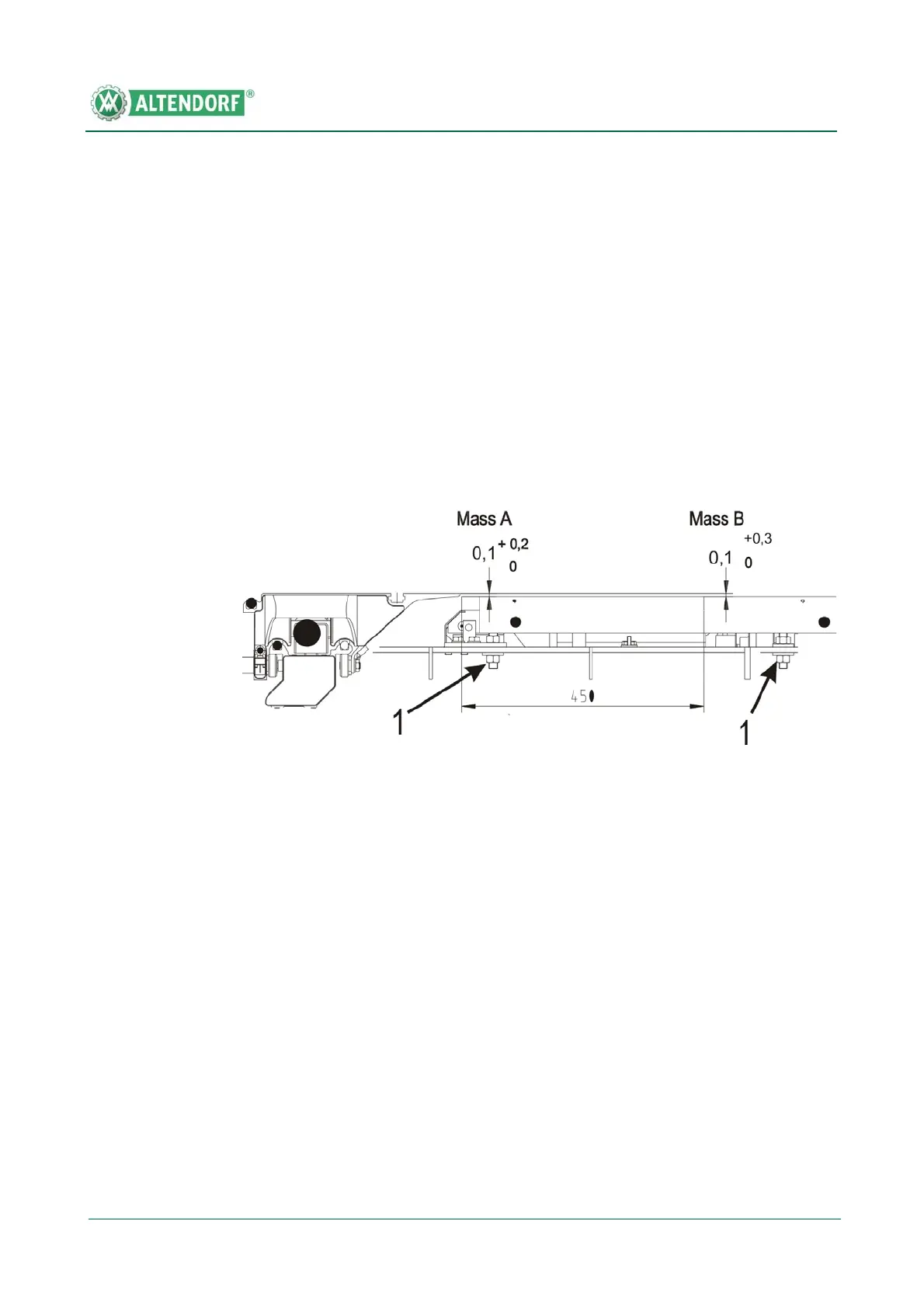

Fig. 5-42 Adjusting the main table
