Transport, siting and installation
5.3.2 Main table length extension
Assembly of TPL 840
Assembly steps:
• Place the TPL onto the brackets on the table top and insert the fastening
screws of the support arms into the holes on the table top face end.
• Loosely secure to the table top with two M10 nuts and U-shaped washers
• Screw-fit the TPL to the aluminium brackets (6)
• Tighten the M10 nuts.
• If necessary, correct the alignment and flushness by readjusting the sup-
port screws (4).

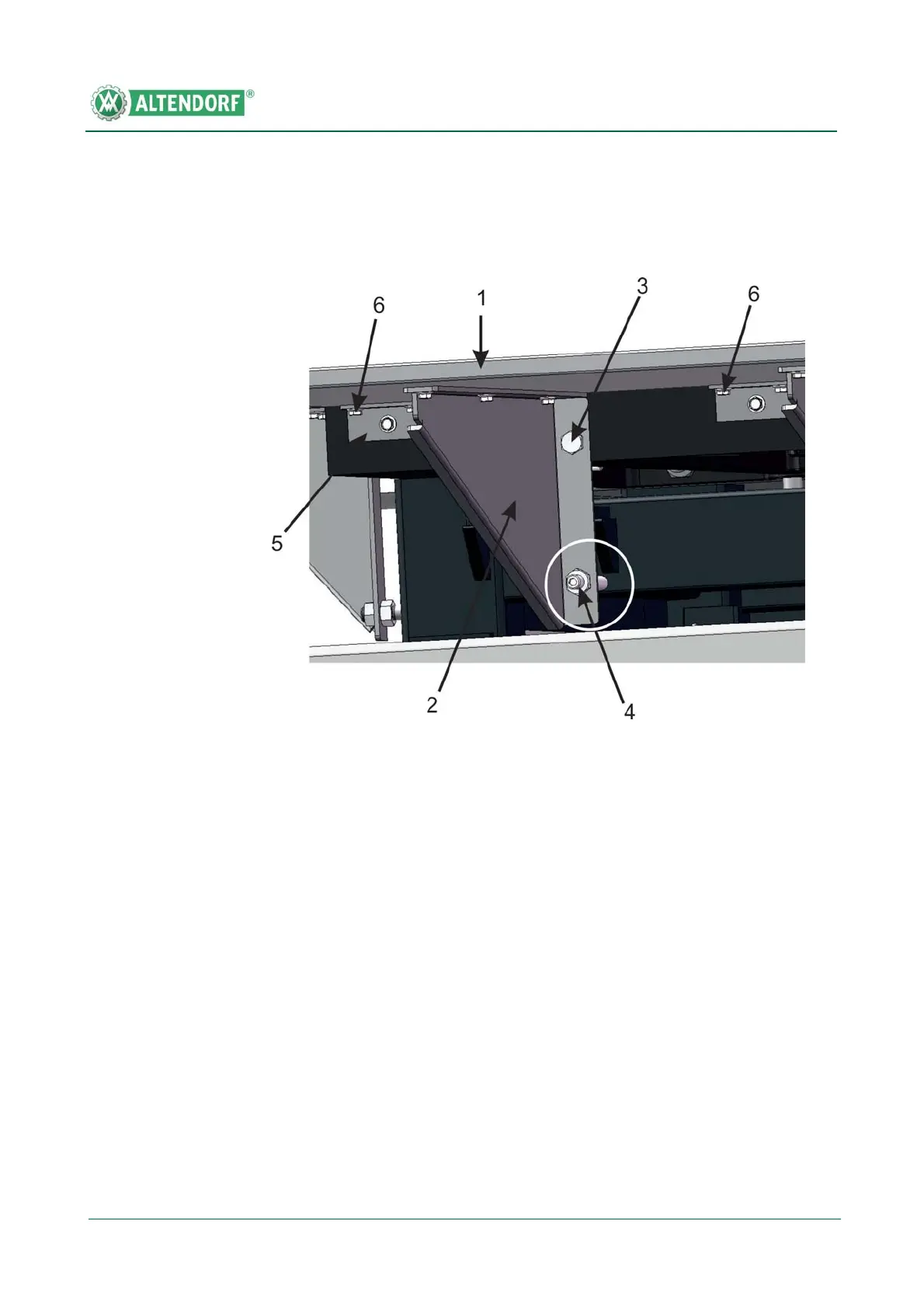

Fig. 5-6 Installing the main table length extension
[1] TPL board
[2] Support arm
[3] Fastening screw M10
[4] Support screw
[5] Stationary installed, adjusted bracket on the cast table top
[6] Fastening screws for TPL on bracket
