Operating
The stop fence of the rip fence can be adjusted in the cutting direction and to
the profile height. Clamp it in the required position with the top eccentric lever.
For crosscutting short workpieces and for recessing or other work cycles during
which offcuts can become jammed between the stop and the saw blade, the
stop fence is moved forward until its rear end is in front of the saw blade.
The stop fence is moved into the flat position when cutting flat and narrow
workpieces. This means there is more space for workpiece guidance and the
fence can be moved closer to the saw blade, in particular when the saw blade
is tilted, without hitting the protection hood.

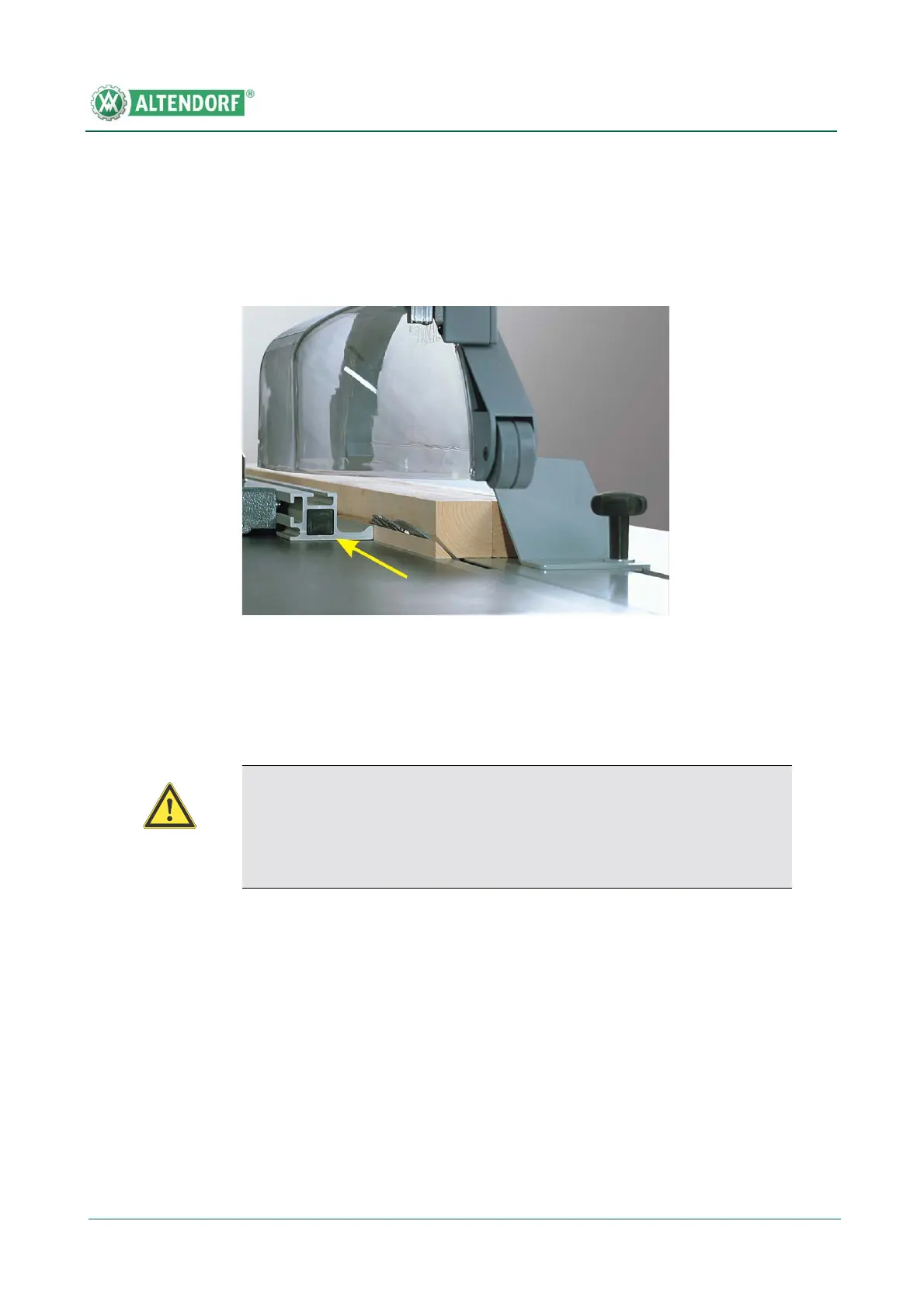

Fig. 6-7 Flat position of the stop fence
Warning!
Danger of injury!
When cutting widths of less than 120 mm, make sure that the material is
fed with a push stick and that the stop fence is laid flat.
