Operating
175
0000010038-003- GB
Operating
Aligning the laser beam with the cutting line
At the factory the laser is set so that the beam is perpendicular and parallel to
the sliding table.
When the hood has been swung away and this has been followed by positio-
ning, it is necessary to check and possibly correct the laser settings.
Setting:
• Place wooden gauges (1) in the sliding table groove, and saw for approx.
15 mm
• Set the laser beam parallel to the cutting line with the left setscrew (2)
• Move the laser in parallel with the right-hand setscrew (3) until the beam
aligns with the cutting line

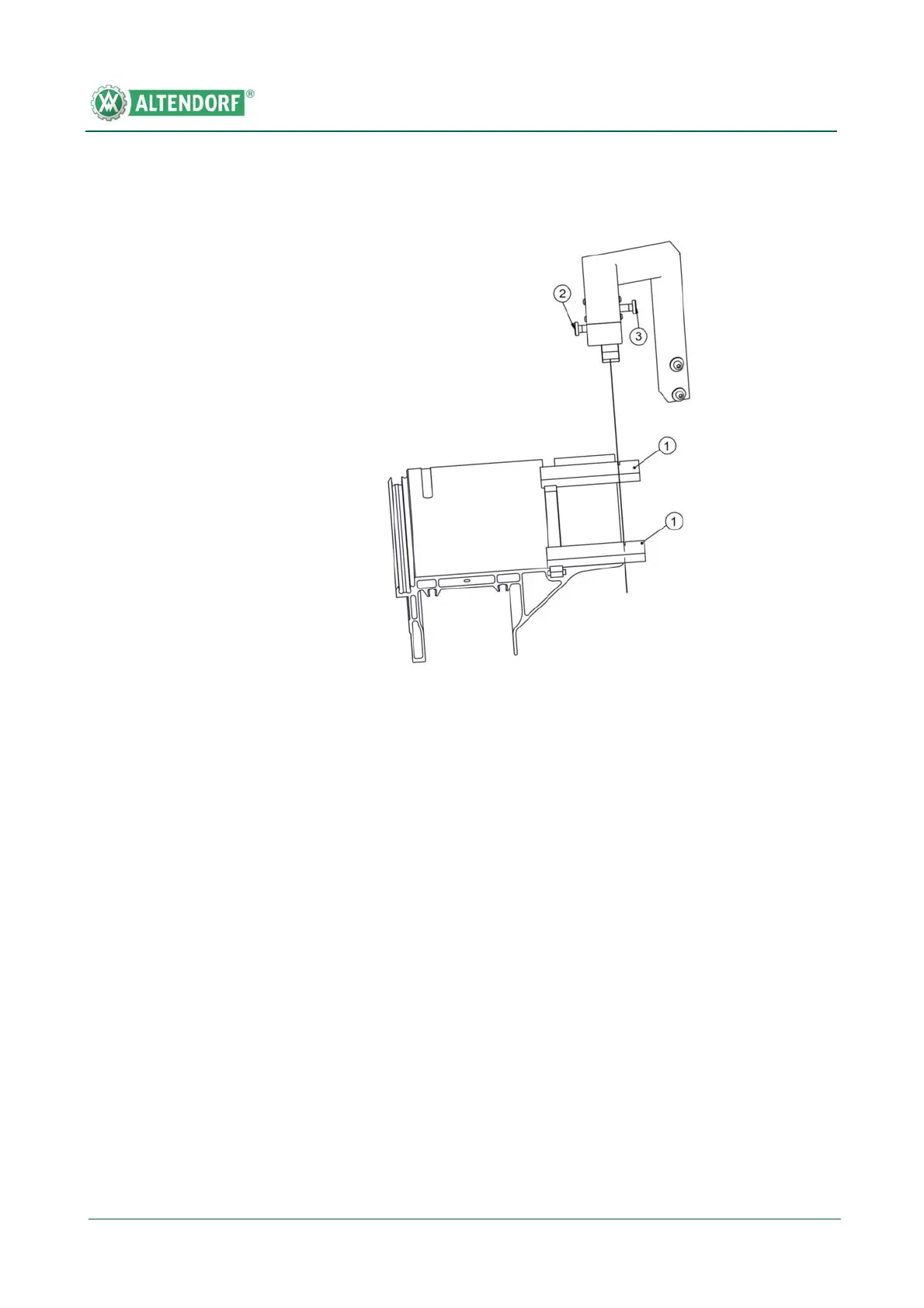

Fig. 6-101 Aligning the laser
