Transport, siting and installation
52
Transport, siting and installation
0000010038-003- GB
Cross-slide clamping mechanism WA/WGA/CNC crosscut fence UNO 90
To push the cross-slide to other positions on the sliding table, undo the clam-
ping lever [1] up to the stop of the safety locking mechanism. It is now possible
to displace the cross-slide without a risk of the cross-slide falling down.
To remove the cross-slide, pull out the safety locking mechanism and push up
the clamping lever. The safety mechanism engages in the hole [4]. The cross-
slide can now be removed completely.
When assembling the cross-slide, first hook it in, pull out the safety locking me-
chanism, push the clamping lever all the way to the fixed stop. Release the sa-
fety locking mechanism.

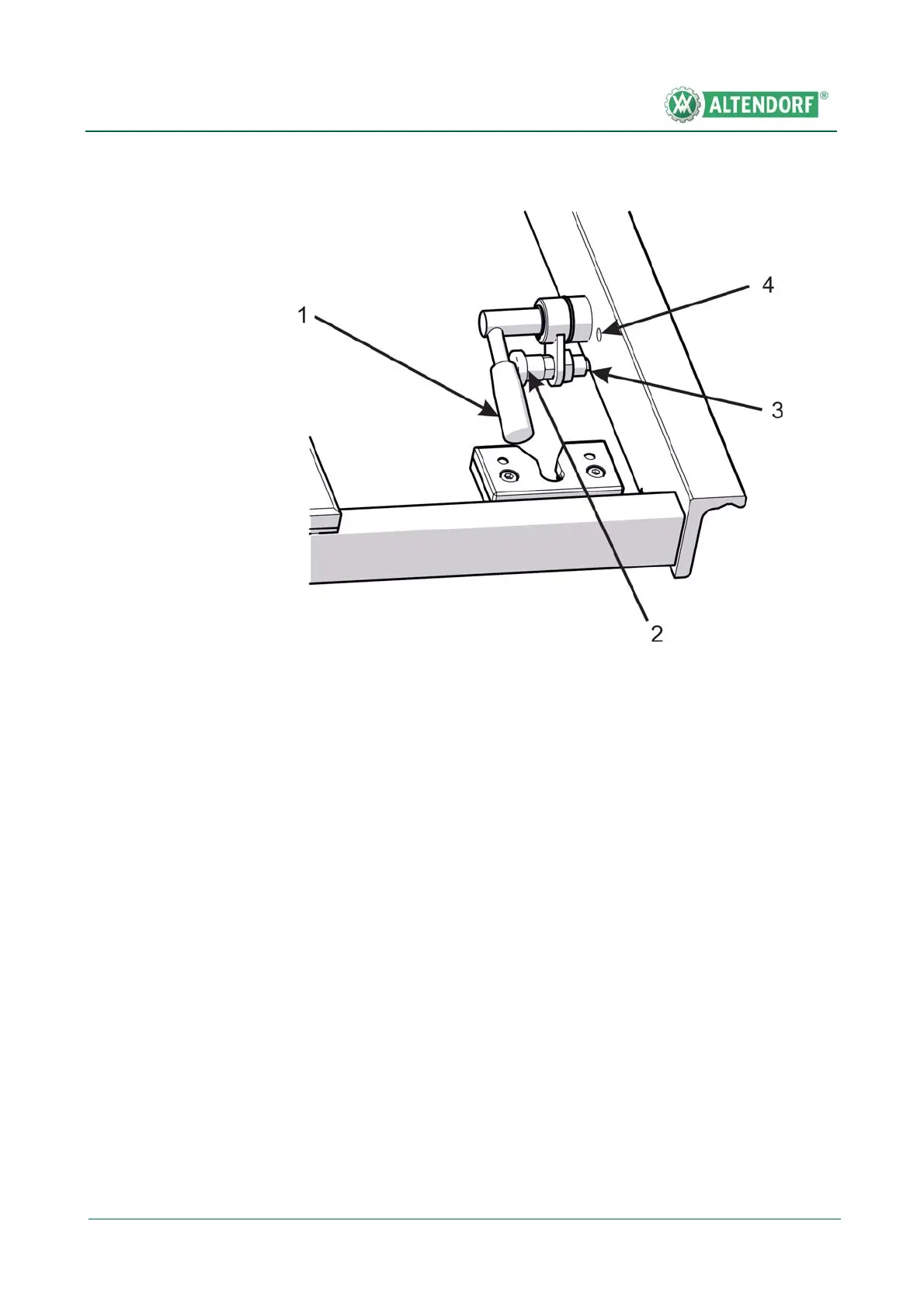

Fig. 5-11 Clamping lever
[1] Clamping lever
[2] Safety locking mechanism
[3] Stop, safety locking mechanism for displacing the cross-slide
[4] Drill hole, safety locking mechanism for removing the cross-slide
