Transport, siting and installation
53
0000010038-003- GB
Transport, siting and installation
Cross-slide clamping, CNC crosscut fence DUO 90/DUO Flex
To push the cross-slide to other positions on the sliding table, undo the clam-
ping lever [1]. It is now possible to displace the cross-slide without a risk of the
cross-slide falling down.
To remove the cross-slide, pull out the safety locking mechanisms and turn
them. The safety locking mechanisms engage. The cross-slide can now be re-
moved completely.
When assembling the cross-slide, first hook it in and push the clamping lever all
the way to the fixed stop. Undo the safety locking mechanism and turn to enga-
ge.

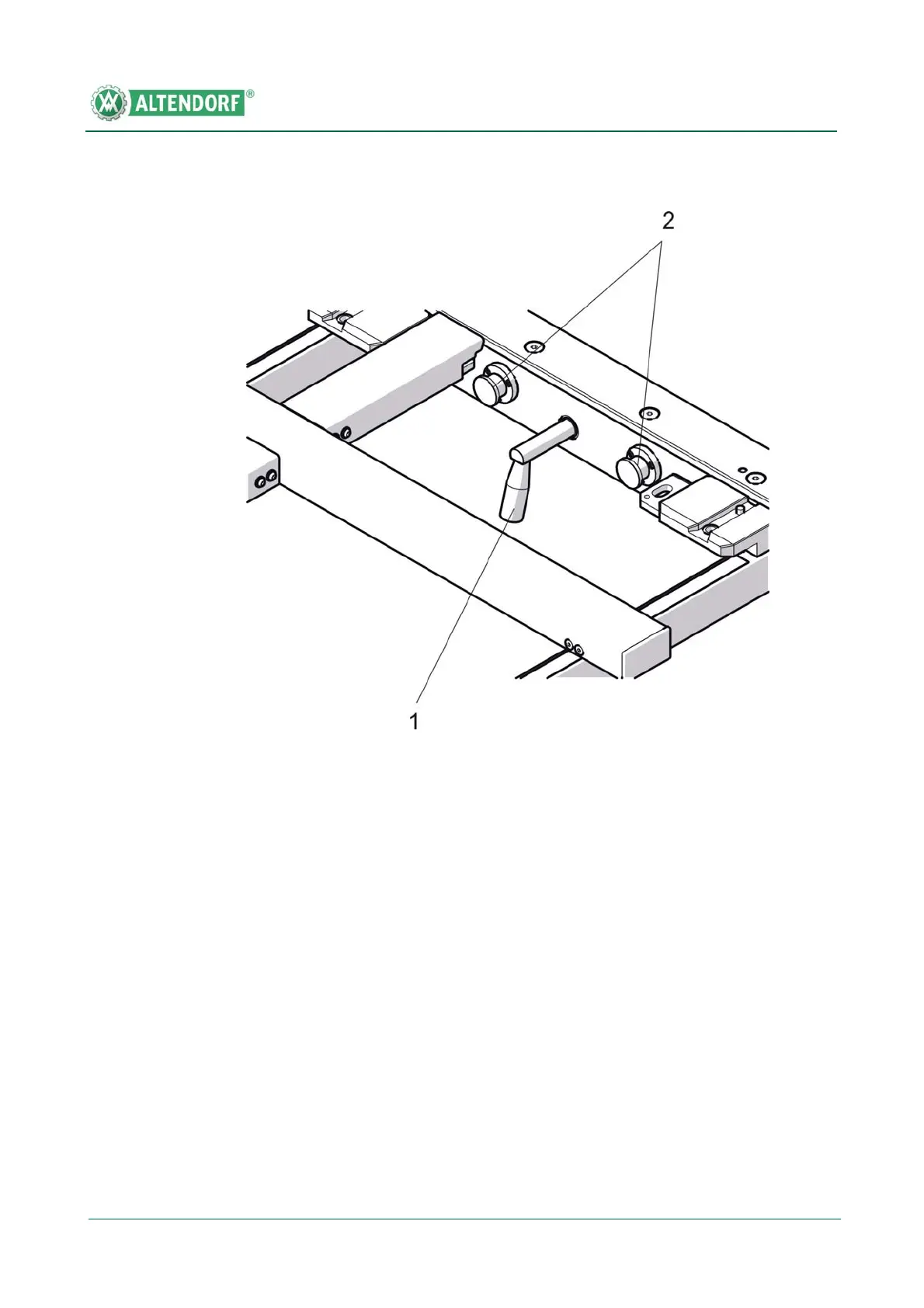

Fig. 5-12 Cross-slide clamping, CNC crosscut fence DUO
[1] Eccentric clamping lever
[2] Safety locking mechanism
