Transport, siting and installation
54
Transport, siting and installation
0000010038-003- GB
Crosscut fence, 90° only
1. Place the crosscut fence on the cross-slide such that the clamping bolts [1]
can be inserted in the grooves [2]
2. Tighten the clamping bolts [1], positioning is carried out by means of the
tapered surfaces
Changing the 90° crosscut fence
1. Undo the clamping bolts [1]
2. Move the crosscut fence to a new position; ensure that the clamping bolts
are inserted into the grooves
3. Tighten the clamping bolts [1], positioning is carried out by means of the
tapered surfaces

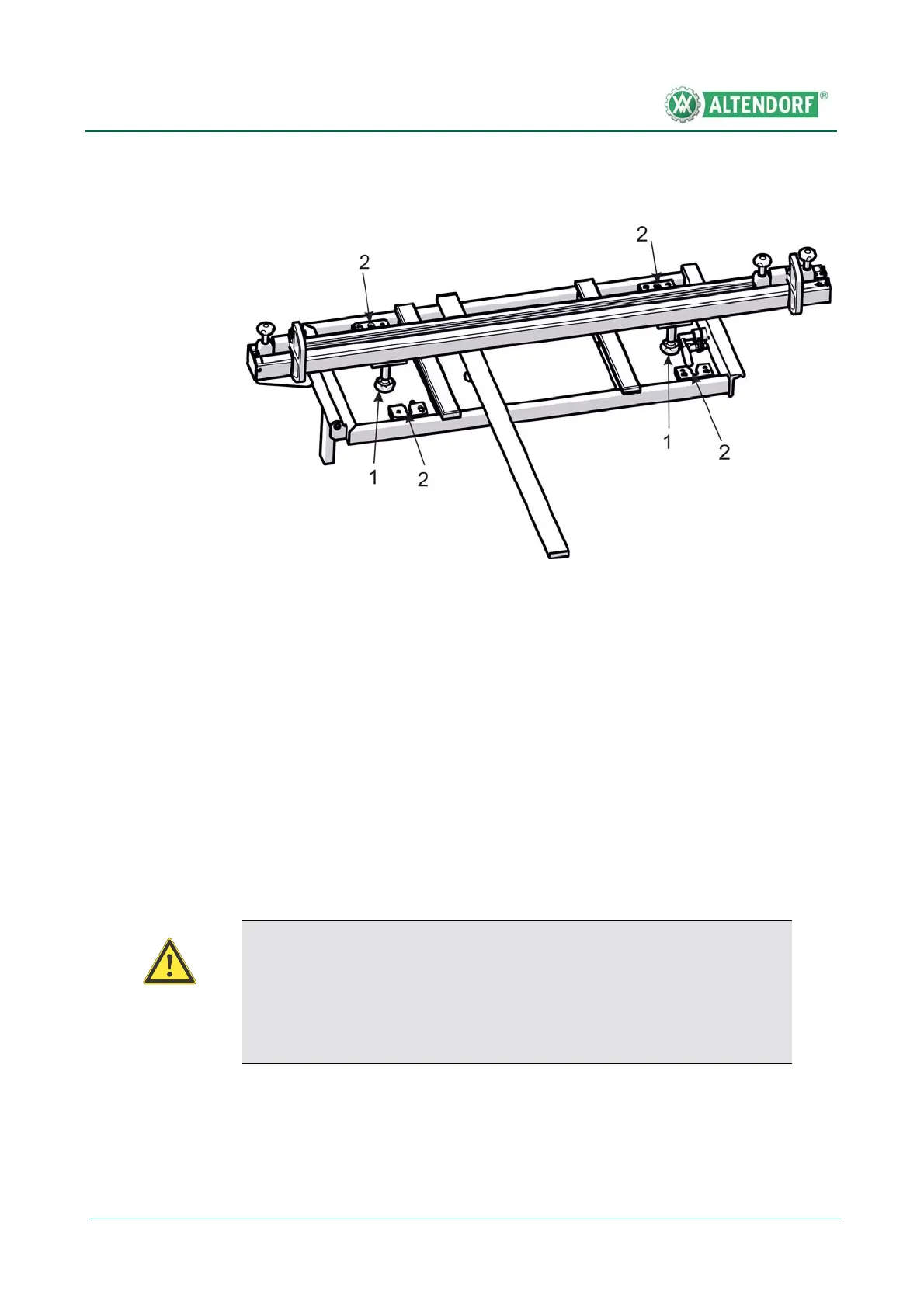

Fig. 5-13 Installing the 90° crosscut fence
Warning!
In the case of the "tilting to both sides" option, only use the crosscut fen-
ces supplied with this machine!
Non-observance can lead to injuries and/or damage of machine compo-
nents.
