Transport, siting and installation
55
0000010038-003- GB
Transport, siting and installation
Crosscut-mitre fence
Installing the standard crosscut-mitre fence / with DIGIT L + LD:
• Place the WGA on the rear fence surface
• Push the ball bearing over the groove in the sliding table
• Unscrew the handle of the degree scale clamping
• Carefully turn the crosscut-mitre fence by 90° so that the ball bearing can
be inserted in the groove of the sliding table and the threaded bolt of the
clamping degree scale in the groove of the profile
• Fasten the handle of the clamping degree scale

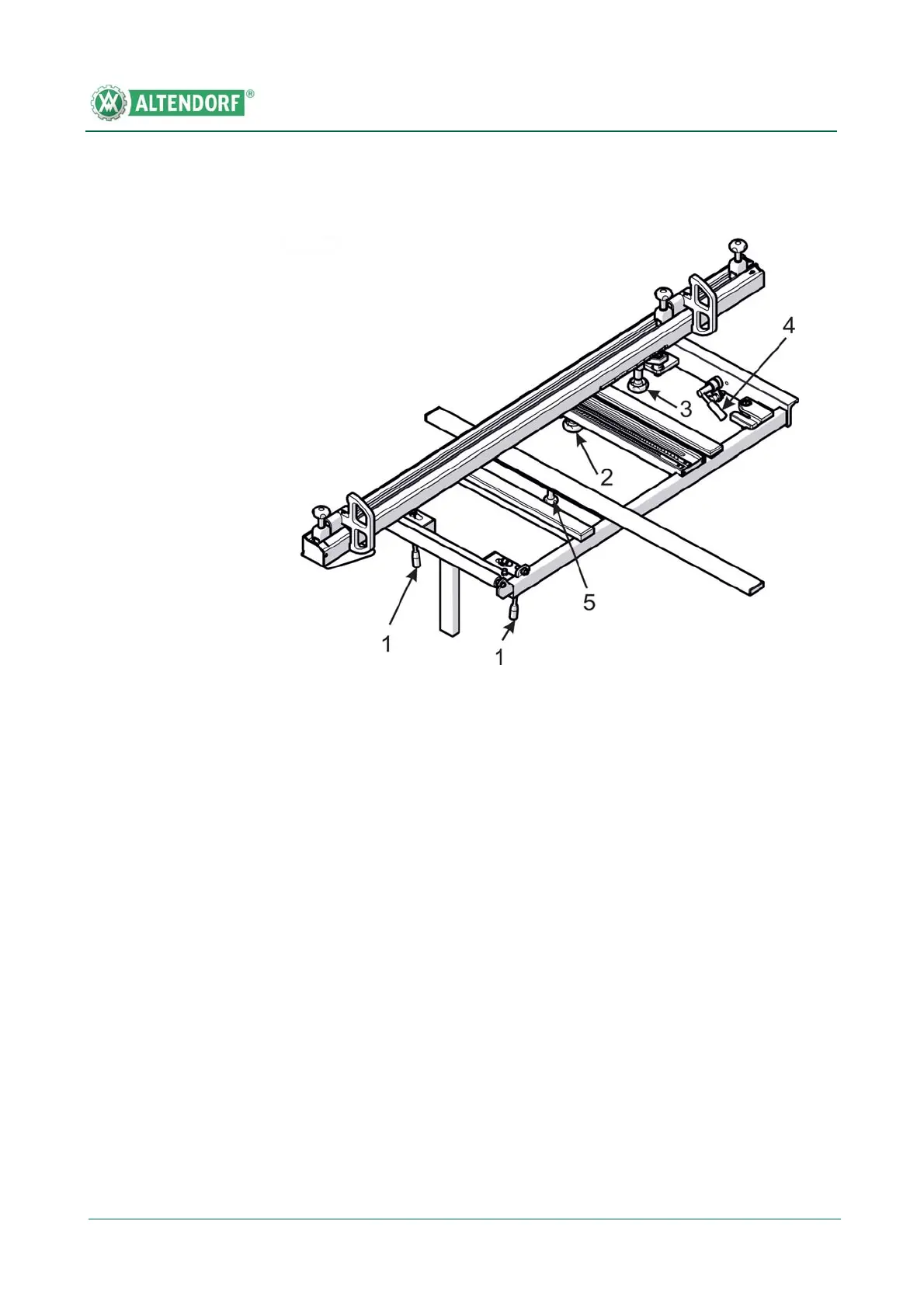

Fig. 5-14 Crosscut-mitre fence operating elements
[1] Clamping lever 90° position
[2] Clamping degree scale
[3] Clamping pivot point
[4] Clamping lever, cross-slide / sliding table
[5] Clamping, C profile
