Fitting the saw blade
The description for fitting the saw blade applies both to two-part scoring blades
and to RAPIDO scoring tools.
Only use saw blades with a diameter of 120 mm and a hole diameter of 22 mm!
• Switch off the drives.
• Move the scoring saw up to its highest position.
• Move the sliding table in the cutting direction.
• Unlock the lock in the middle of the saw blade by pressing the knob on the
middle carriage.
• Move the sliding table to the end position in the cutting direction.
• Open the bottom hinged safety cover (orange coloured cover plate).
• Release the nuts with a special wrench by turning counterclockwise.
• Before fitting the new scoring blade, remove any adhering chips from both
flanges.
• Place the saw blade and front flange on the saw shaft, and tighten the nut
clockwise.

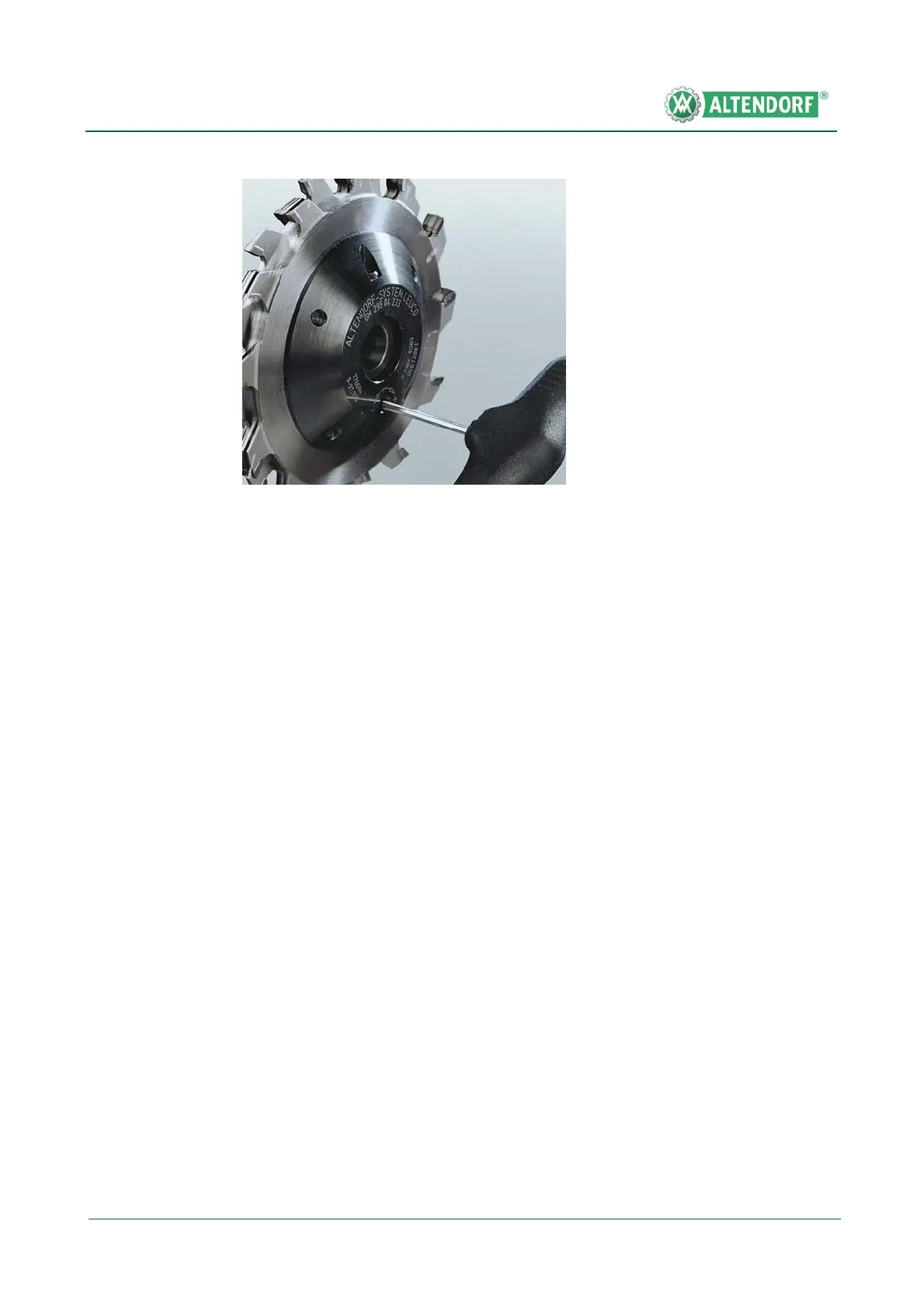

Fig. 6-62 RAPIDO scoring tool
