Operating
Electro-pneumatic hold-down device
The electro-pneumatic hold-down device fixes the workpiece to the crosscut
fence and operates with a clamping force of max. 1000 N at a pressure of 6
bar. The maximum clamping height is 90 mm.
The safety cylinder only clamps the workpiece when the pressure plate is posi-
tioned vertically in relation to the cylinder axis. If the pressure plate is offset by
more than 2° from the vertical position, e.g. by contact with the back of the
hand, no clamping force builds up.

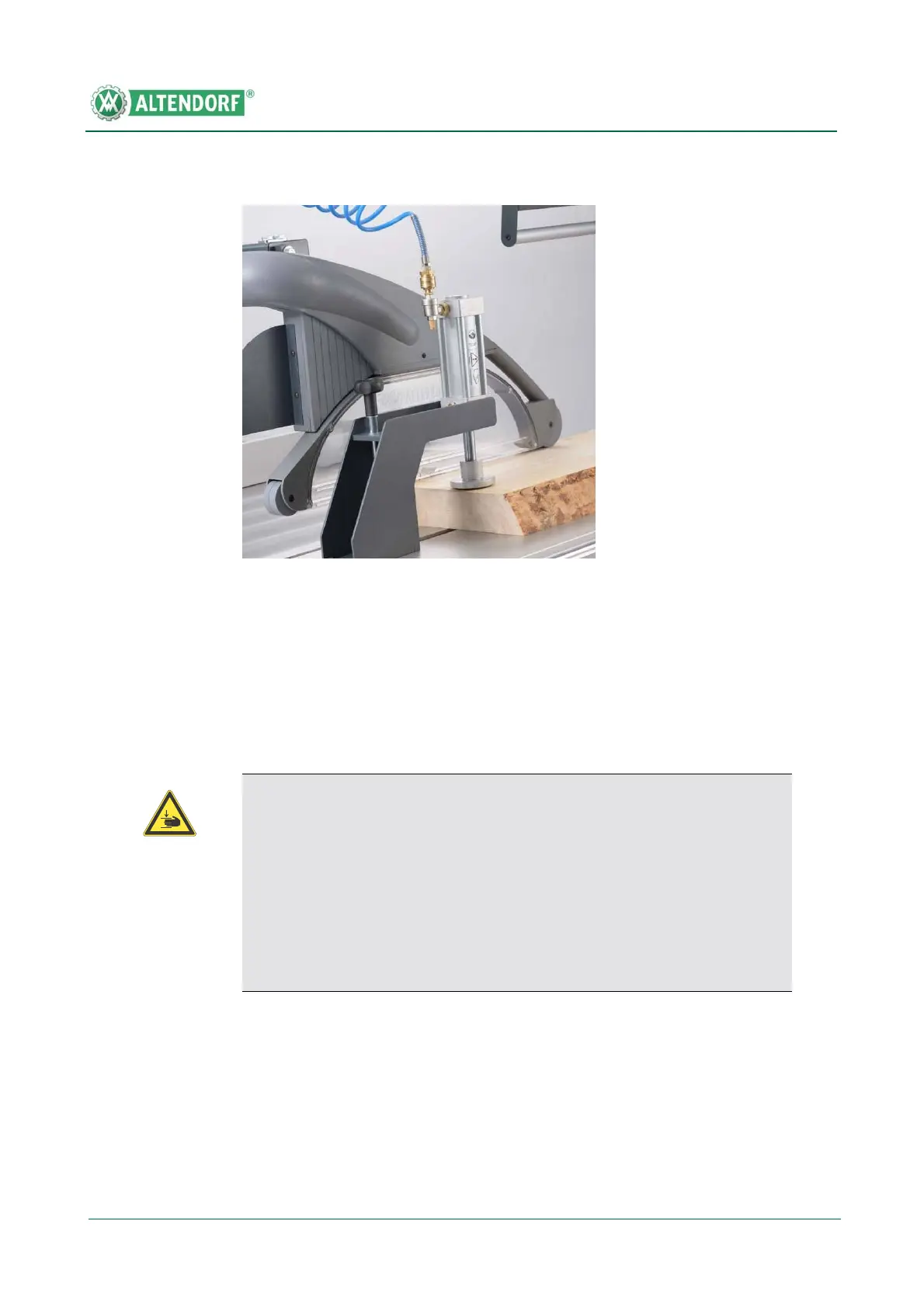

Fig. 6-94 Electro-pneumatic hold-down device
Warning!
Danger of crushing fingers!
• Ensure that the pressure plate can freely move in all directions,
otherwise, the safety function will be impaired.
• Never reach beneath the pressure plate on purpose!
• Never use two fingers to reach opposite to, parallel or centred
beneath the clamping plate!
