Setting: Manually adjustable rip fence
• Undo the nuts on the bolts connecting the round bar and the table width
extension
• The degree of free cut on the rip fence can be altered by adjusting the
middle lock nuts
• Tighten the nuts on the bolts connecting the round bar and the table width
extension
Setting: Electromotive rip fence
• Release clamping screws 1
• Set the free cut by adjusting setscrews 2
• Tighten clamping screws 1

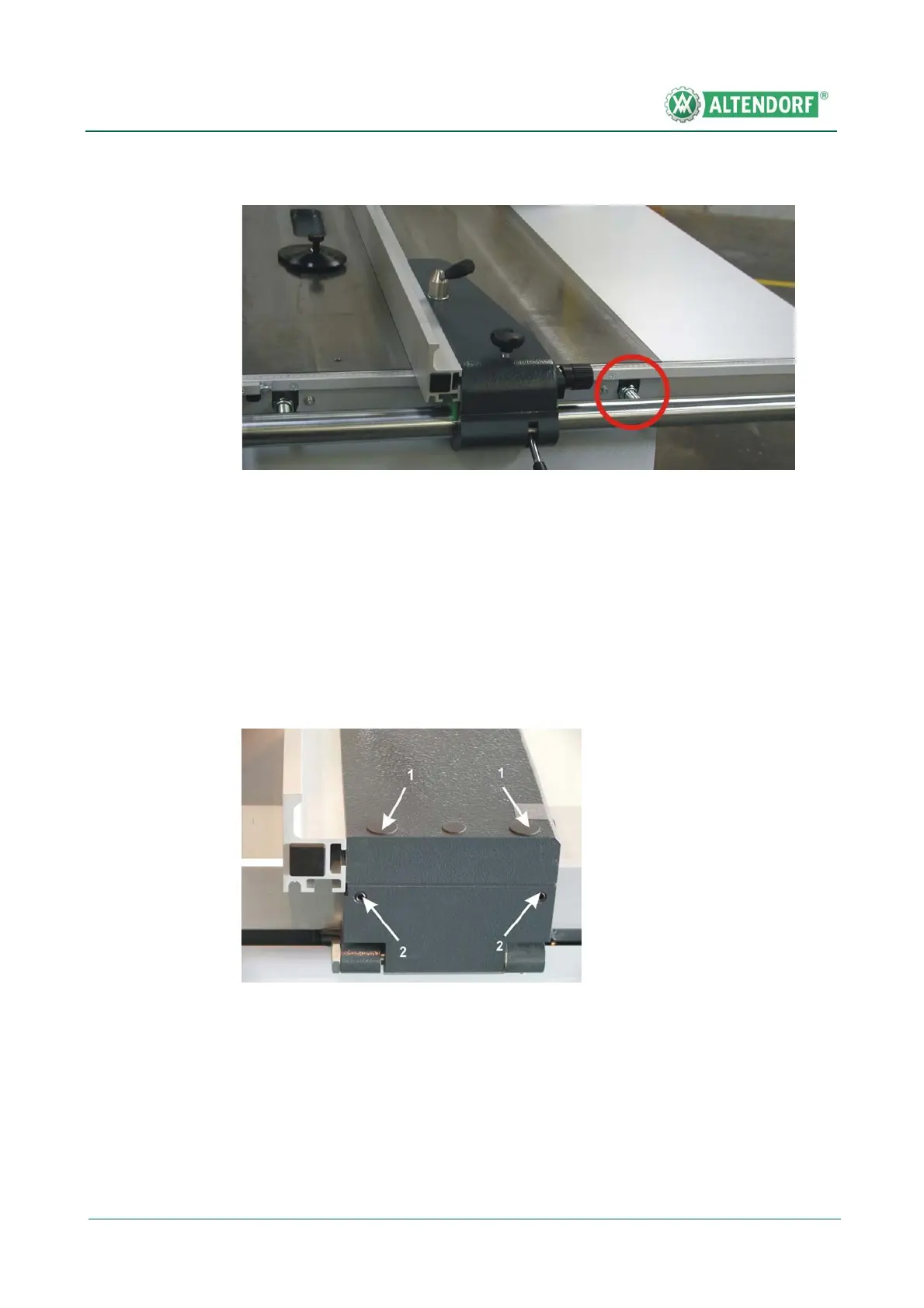

Fig. 5-45 Setting free cuts, standard rip fence
Fig. 5-46 Free cut setting, electromotive PA
