Operating
Dividing large boards
For this work cycle, the dimension can be set both on the rip fence and on the
crosscut fence. If several pieces of the same size are to be cut from a large
board, it is best to first cut off parallel strips at the rip fence and then cut them to
the required dimension. However, if the workpieces exceed the cutting width of
the machine, the dimension is set at the machine's crosscut fence.
Cutting with a negative cutting angle
For this work cycle only the crosscut fence or crosscut-mitre fence is used.
Do not use a DUPLEX fence!
Do not use a clamping shoe as the saw blade is tilted above the sliding table for
a negative cutting angle.

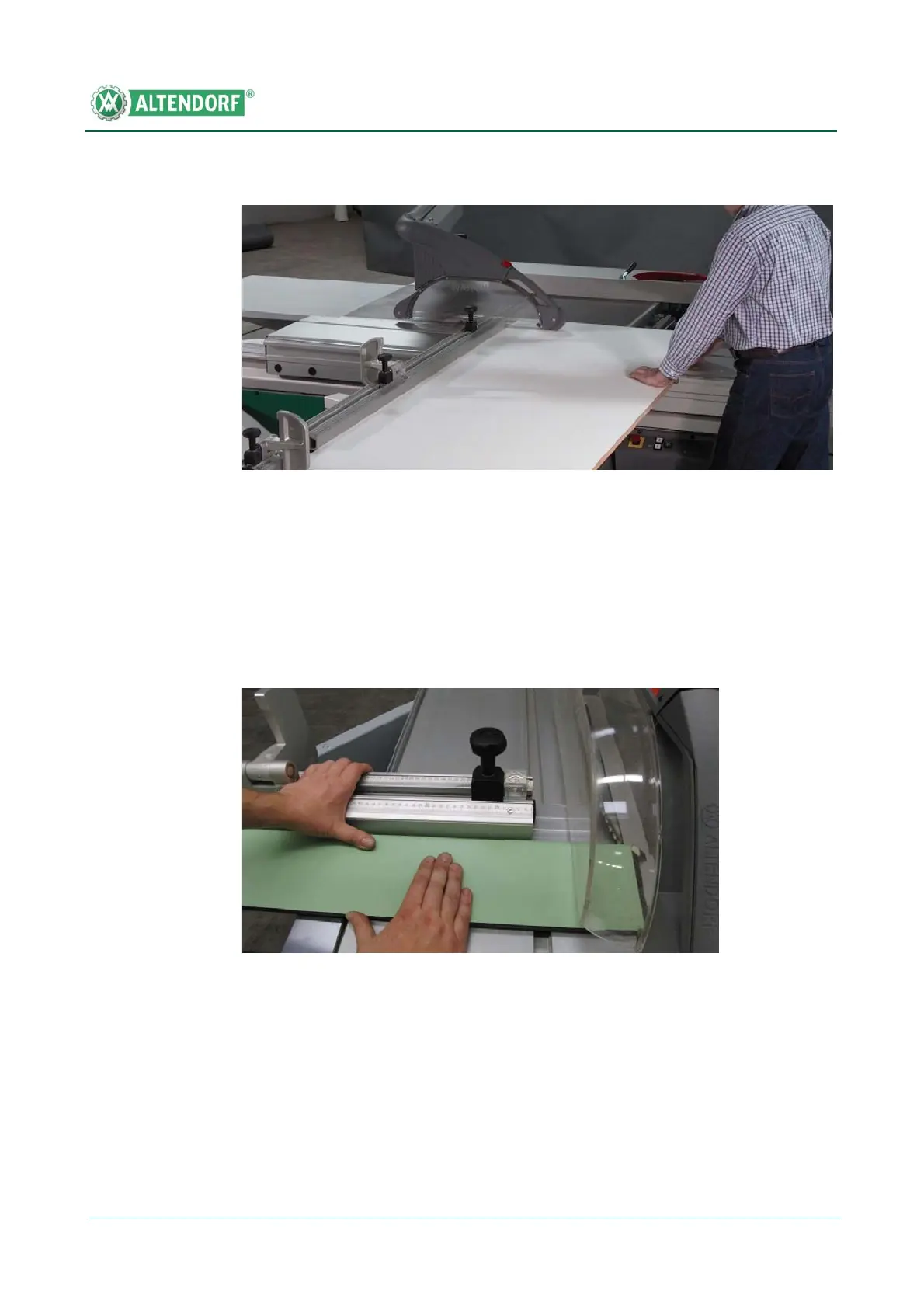

Fig. 6-19 Dividing
Fig. 6-20 Cutting with a negative angle
