4. Configuration
159

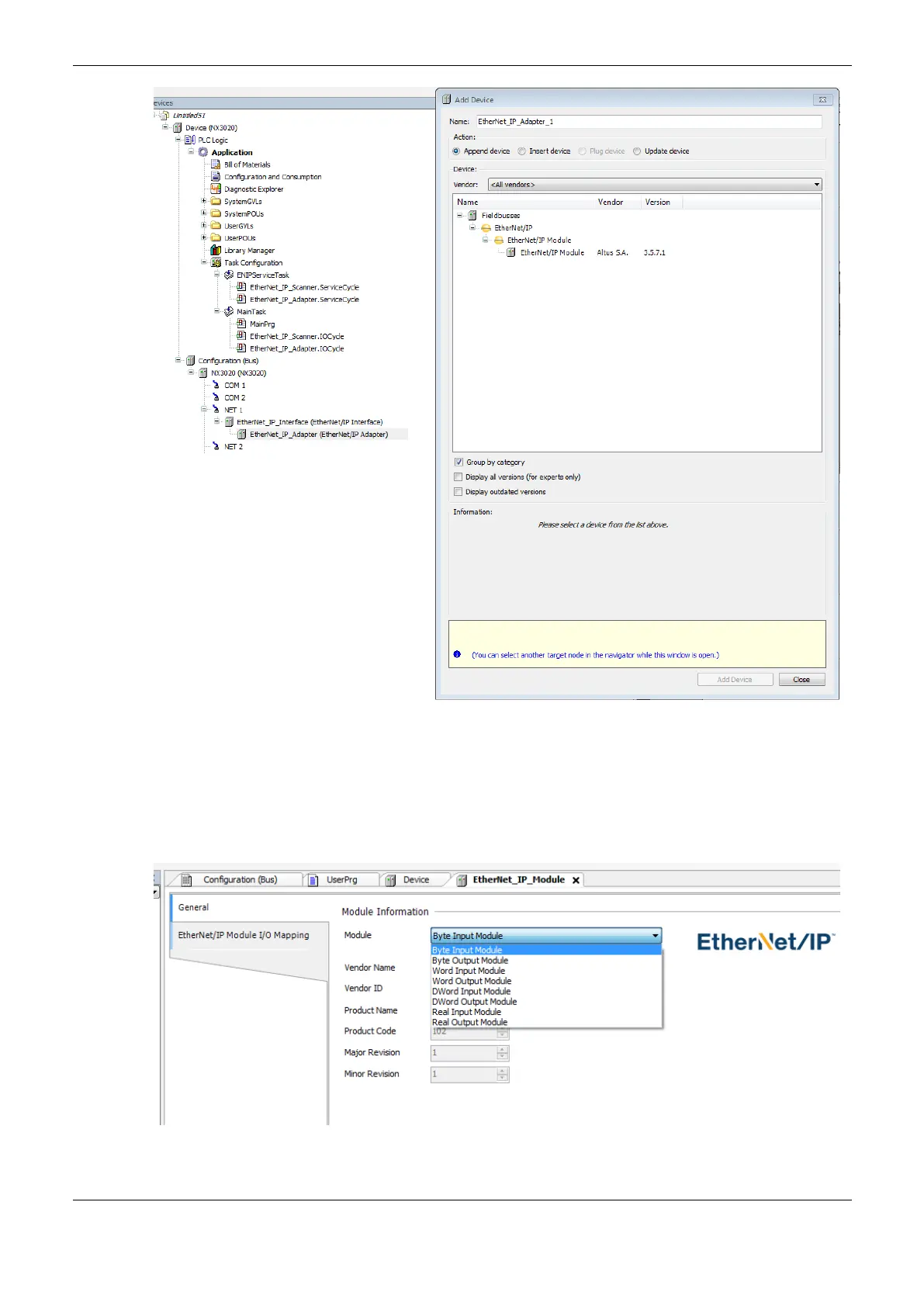

Figure 4-68. Adding an EtherNet/IP Module under the Adapter
Module Types
There are 8 diferent modules which can be added under the adapter. Four outputs and four inputs.
They are of type BYTE, WORD, DWORD and REAL. These types can be chosen in the general tab
of the module
Figure 4-69. EtherNet/IP Module’s Type
