Amada WELD CHECKER MM-400A - When Using an External ±10 V Voltage Input (Force;Displacement-Equipped Specification)

MM-400A
6. Installation and Connections
6-11
14
8
d. When Using an External ±10 V Voltage Input (Force/displacement-equipped
specification)
1) The MM-400A allows for displaying the measured voltage signal using a
commercial sensor and amplifier connected to the external ±10 V voltage input.
Follow the steps described below to connect the external ±10 V voltage.

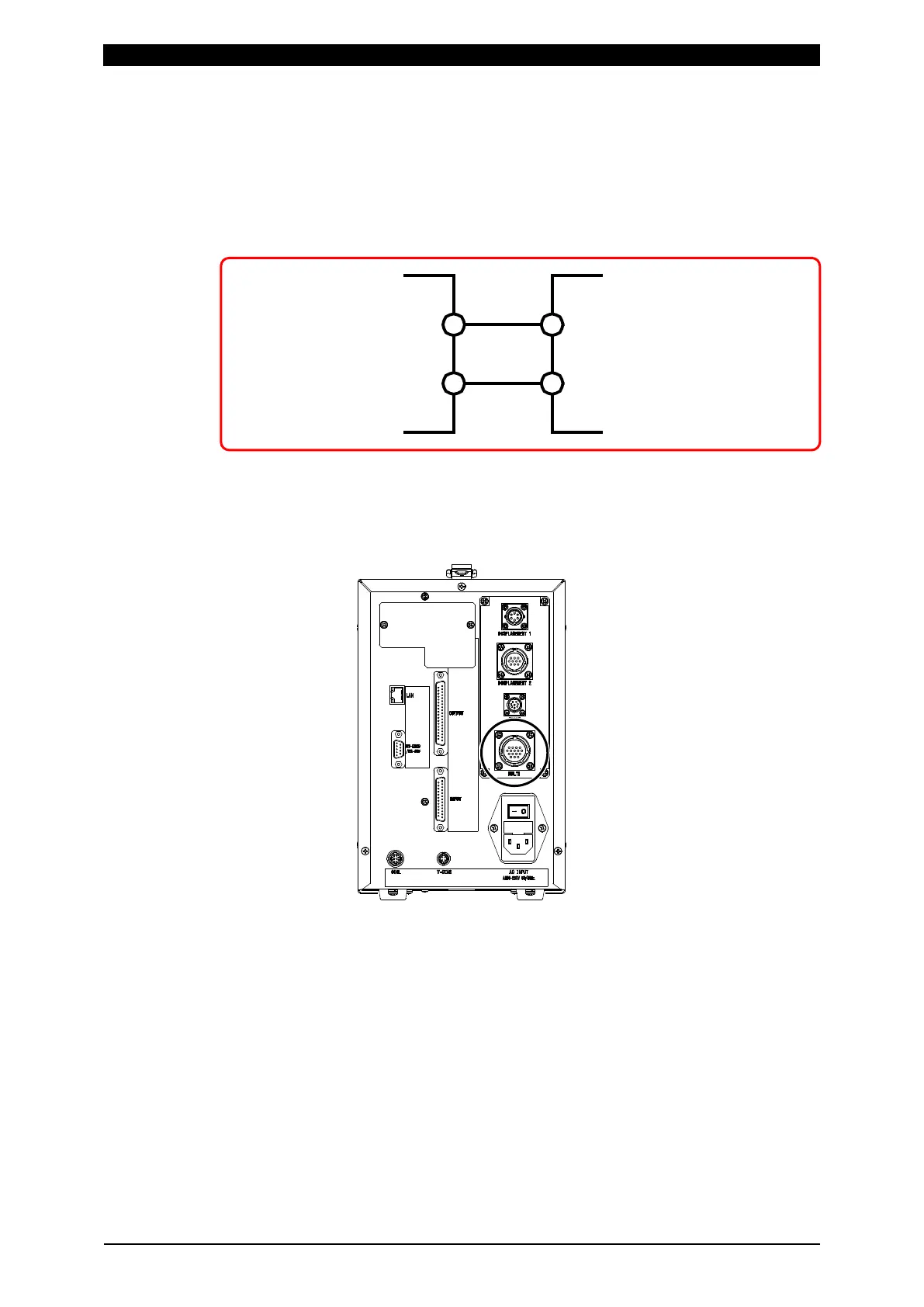

External ±10 V Voltage Input Connection Diagram
The 16-pin female multiconnector is optional.
(Multiconnector SRCN6A21-16P: Japan Aviation Electronics Industry)
2) Plug the multiconnector into the multiconnector [MULTI] on the rear panel of
the MM-400A.
16-pin female
multiconnector
External ±10 V
voltage input
Sensor amplifier
10 V voltage output
GND
GND
MM-400A
